1892787-9 | TE Connectivity

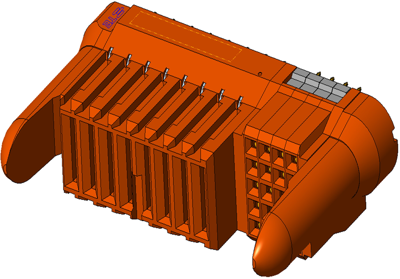

Socket header, 28 pole, pitch 2 mm, straight, black, 1892787-9
Order No.: 71P3817
EAN: 4099891723392
MPN:
1892787-9
Unit Price (€ / pc.)
10.5315 € *
Standard delivery time from the manufacturer is: 18 Weeks
Rectangular connector, 1892787-9, TE Connectivity
Rectangular power connector, Connector assembly, Receptacle, Board-to-Board, 28 Position, 2 mm/2.75 mm Centerline.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| contact surface | gold-plated | |
| Contact type | socket | |
| Connection | press-fit | |
| Connection plating | tin-plated | |
| Rated voltage | 60 V | |
| Orientation | straight | |
| Number of rows | 5 | |
| Pin number | 28 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | socket header | |
| Rated current | 17 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
