1888617-1 | TE Connectivity

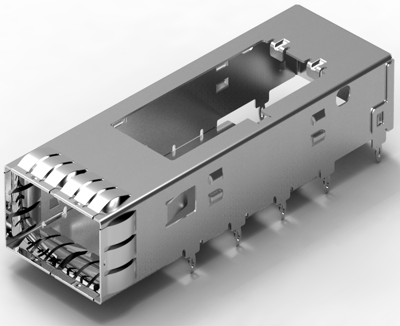

Cage assembly, angled, 1888617-1
Order No.: 37P1951
EAN: 4099889824247
MPN:
1888617-1
Unit Price (€ / pc.)
12.7687 € *
Available in 5 Days: 1,422 pcs. - if ordered today
Total Price:
12.77 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7687 €
10 pcs.
11.8524 €
25 pcs.
11.0670 €
50 pcs.
10.0555 €
*incl. VAT plus shipping costs
Subject to prior sale
QSFP/QSFP+/zQSFP+, 1888617-1, TE Connectivity
Cage Type: Single, Pluggable I/O Product Type: Cage, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Port Matrix Configuration: 1 x 1, Number of Ports: 1, Number of Rear EONs per Port Column: 2, PCB Contact Termination Area Plating Material: Tin, Termination Method to Printed Circuit Board: Through Hole - Press-Fit, Connector Mounting Type: Board Mount, Cage Material: Nickel Silver, PCB Thickness (Recommended): 1.45 mm, Pluggable I/O Applications: SFP+ Stacked Belly-to-Belly, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box & Tray, EMI Containment Feature Type: Internal/External EMI Springs, Included Lightpipe: No, Enhancements: Standard
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Connection | press-fit | |
| Orientation | angled | |
| Version | cage assembly | |
| Additional parts | equipped | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
