1888247-1 | TE Connectivity

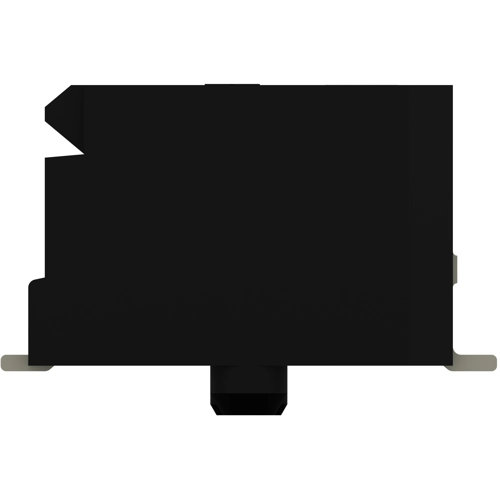

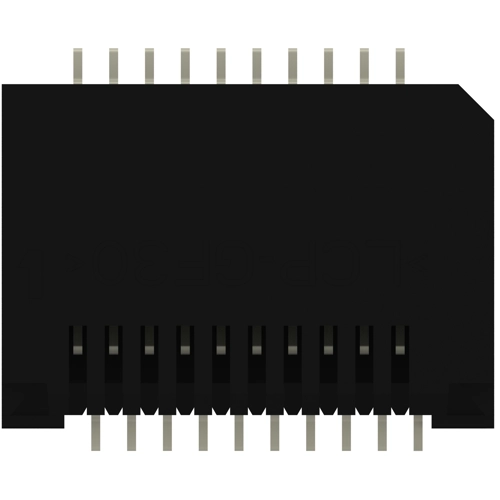

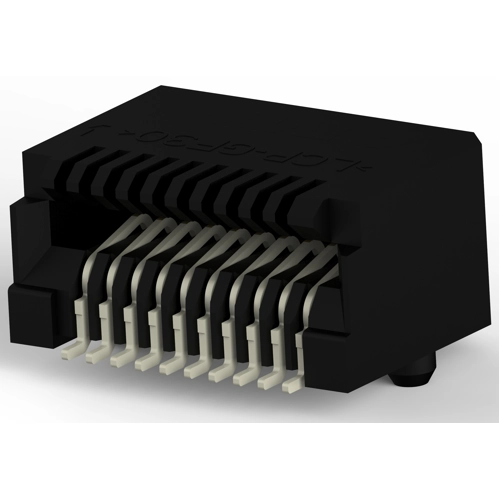

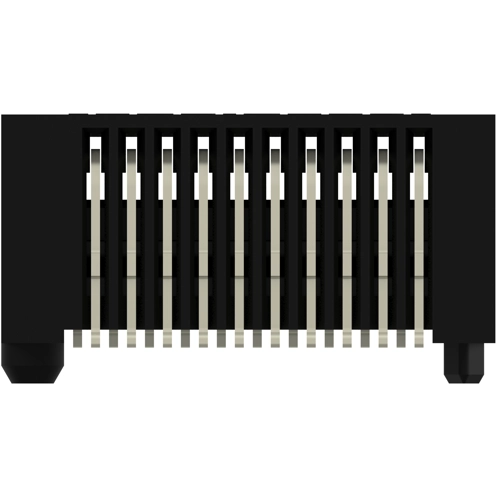

Connector, 20 pole, pitch 0.8 mm, angled, black, 1888247-1
Order No.: 37P2514
EAN: 4099889824421
MPN:
1888247-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.0349 € *
Available in 12 Days: 1,440 pcs. - if ordered today
Cage Assembly, 1888247-1, TE Connectivity
Form Factor: SFP+, Pluggable I/O Product Type: Connector, Connector System: Cable-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 20, Data Rate (Max): 16 Gb/s, Contact Mating Area Plating Thickness: 0.76 µm, Contact Current Rating (Max): 0.5 A, Termination Method to Printed Circuit Board: Surface Mount, PCB Mounting Style: Surface Mount, Connector Mounting Type: Board Mount, Centerline (Pitch): 0.8 mm, Operating Temperature Range: -55 – 85 °C, For Use With Pluggable I/O Products: SFP+ Cage, Pluggable I/O Applications: SFP, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Reel, Comment: Lubricant on contact.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connector | |
| Contact type | socket | |
| Pin number | 20 pole | |
| Grid | 0.8 mm | |
| Connection | SMD | |
| Orientation | angled | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
