1827685-4 | TE Connectivity

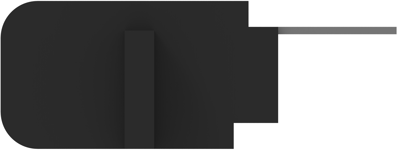

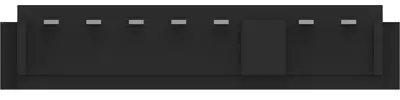

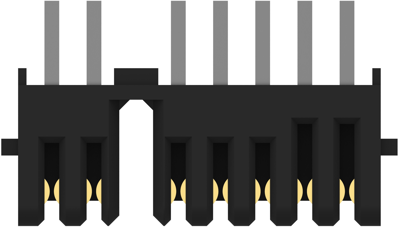

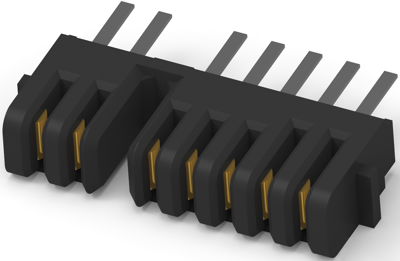

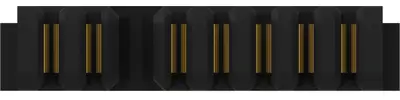

Pin header, 7 pole, pitch 2 mm, angled, black, 1827685-4
Order No.: 37P1617
EAN: 4099889953268
MPN:
1827685-4
Unit Price (€ / pc.)
1.3090 € *
Available in 5 Days: 46,534 pcs. - if ordered today
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
10 pcs.
1.2138 €
25 pcs.
1.1305 €
50 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1827685-4, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 7 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 7
- Operating Temperature Range: -20 – 80 °C [-4 – 176 °F]
- Rated current: 6 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 6 A | |
| Colour | black | |
| Additional parts | unequipped | |
| Contact type | pin | |
| Grid | 2 mm | |
| Orientation | angled | |
| Rated voltage | 150 V | |
| Connection | crimp connection | |
| Breakable | No | |
| Pin number | 7 pole | |
| Version | pin header | |
| Type of locking | No | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
