1775862-2 | TE Connectivity

Socket header, 52 pole, pitch 0.8 mm, angled, black, 1775862-2

Order No.: 36P9265
EAN: 4099889949537
MPN:
1775862-2

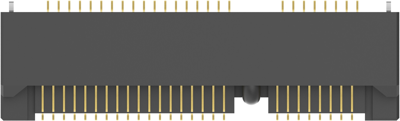

1775862-2 TE Connectivity PCB Connection Systems Image 1

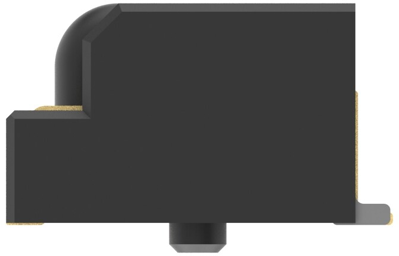

1775862-2 TE Connectivity PCB Connection Systems Image 2

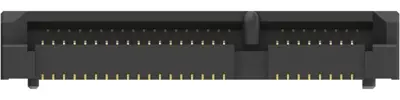

1775862-2 TE Connectivity PCB Connection Systems Image 3

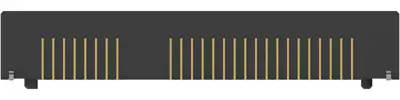

1775862-2 TE Connectivity PCB Connection Systems Image 4

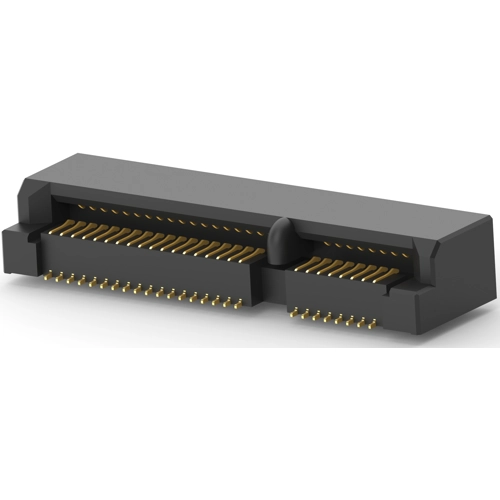

1775862-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2495 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1186 €
50 pcs.
1.0115 €
100 pcs.
0.9163 €
*incl. VAT plus shipping costs
**Subject to prior sale

Mini PCI Express and mSATA, 1775862-2, TE Connectivity

Connector System: Board-to-Board, Sealable: No, Connector & Contact Terminates To: Printed Circuit Board, PCB Mount Orientation: Horizontal, Number of Positions: 52, Ejector Location: None, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold Flash, PCB Contact Termination Area Plating Material Finish: Matte, Contact Current Rating (Max): .5 A, Termination Method to Printed Circuit Board: Surface Mount, PCB Mount Retention: Without, Housing Color: Black, Centerline (Pitch): .8 mm, Row-to-Row Spacing: .8 mm, Stack Height: 5.2 mm, Operating Temperature Range: -55 – 85 °C, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Bus Type: Mini PCI Express, Packaging Quantity: 550, Packaging Method: Tape & Reel

Technical specifications
Connection Lötanschluss
Number of rows 2
Version Buchsenleiste
Additional parts bestückt
Breakable No
Colour schwarz
Contact type Buchse
contact surface vergoldet
Orientation abgewinkelt
Pin number 52-polig
Grid 0.8 mm
Type of locking Nein
Logistics
Country of origin IN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
