1775441-4 | TE Connectivity

Socket housing, 4 pole, pitch 1.5 mm, straight, natural, 1775441-4

Order No.: 36P9966
EAN: 4099889950960
MPN:
1775441-4

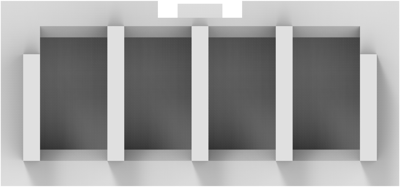

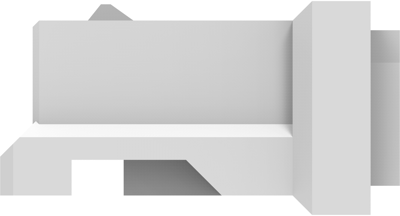

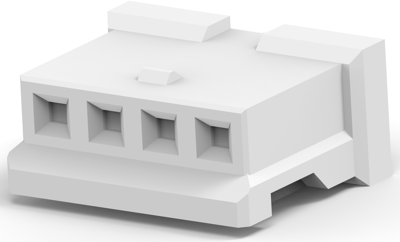

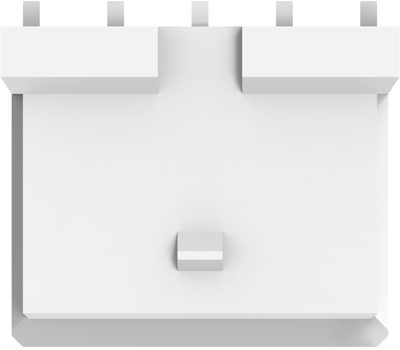

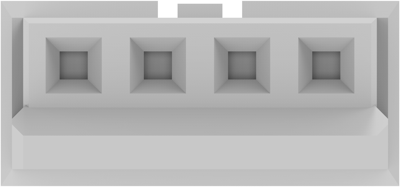

1775441-4 TE Connectivity PCB Connection Systems Image 1
1775441-4 TE Connectivity PCB Connection Systems Image 2
1775441-4 TE Connectivity PCB Connection Systems Image 3
1775441-4 TE Connectivity PCB Connection Systems Image 4
1775441-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0452 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
542.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.0452 €

PCB Connection System, 1775441-4, TE Connectivity

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 3 A
  • Centerline (Pitch): 1.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Pin number 4 pole
Contact type socket
Type of locking Yes
Colour natural
Rated current 3 A
Rated voltage 250 V
Connection crimp connection
Grid 1.5 mm
Orientation straight
Version socket housing
Additional parts unequipped
Breakable No
Number of rows 1
Logistics
Property Value
Customs tariff number 85366990
Country of origin JP
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
