1775099-8 | TE Connectivity

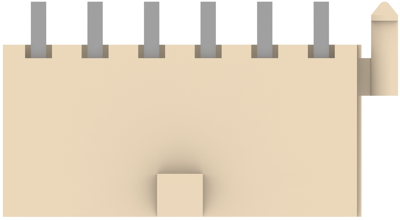

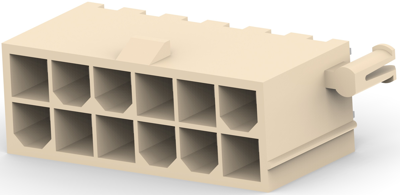

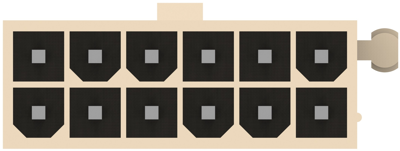

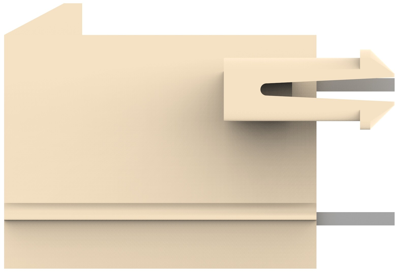

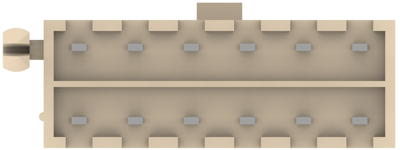

Pin header, 12 pole, pitch 1.4 mm, straight, ivory, 1775099-8
Unit Price (€ / pc.)
0.6069 € *
Available in 5 Days: 3,680 pcs. - if ordered today
Total Price:
0.61 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6069 €
10 pcs.
0.5593 €
25 pcs.
0.5236 €
50 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1775099-8, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 12 Position, 1.4 mm Centerline, Tin, Through Hole-Solder, Power, Ivory.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 9 A | |
| contact surface | tin-plated | |
| Colour | ivory | |
| Additional parts | equipped | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 1.4 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | solder connection | |
| Pin number | 12 pole | |
| Version | pin header | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
