1744426-4 | TE Connectivity

Pin header, 4 pole, pitch 2.5 mm, angled, white, 1744426-4

Order No.: 34P7388
EAN: 4099889915655
MPN:
1744426-4
Series: Economy Power

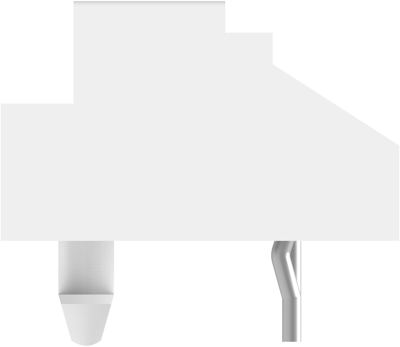

1744426-4 TE Connectivity PCB Connection Systems Image 1

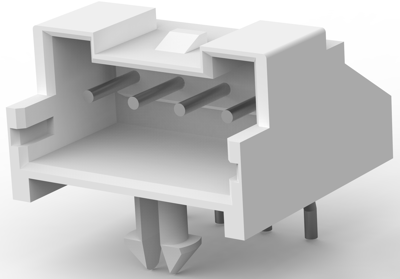

1744426-4 TE Connectivity PCB Connection Systems Image 2

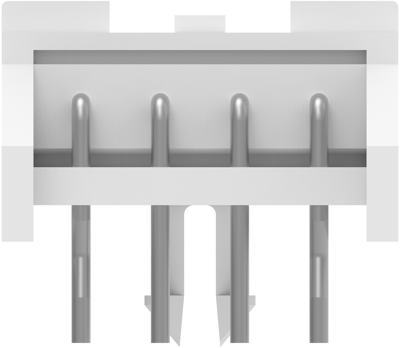

1744426-4 TE Connectivity PCB Connection Systems Image 3

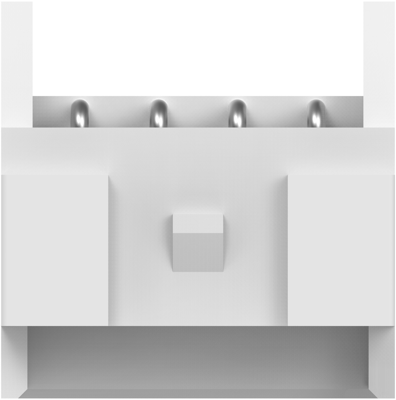

1744426-4 TE Connectivity PCB Connection Systems Image 4

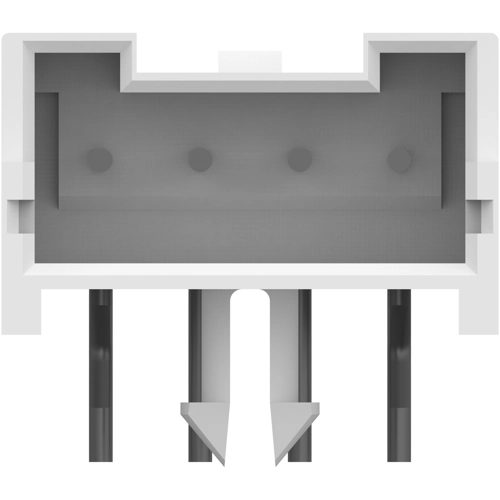

1744426-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3570 €
50 pcs.
0.3094 €
100 pcs.
0.2666 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1744426-4, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 4 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: angled
  • Number of positions: 4
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 4.5 A
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 4 pole
Grid 2.5 mm
Connection solder pin
Orientation angled
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 4.5 A
Additional parts equipped
Number of rows 1
Breakable No
Colour white
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
