1744417-5 | TE Connectivity

Socket housing, 5 pole, pitch 2.5 mm, straight, natural, 1744417-5

Order No.: 34P7401
EAN: 4099889915778
MPN:
1744417-5
Series: Economy Power

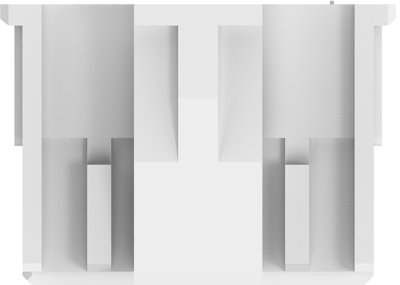

1744417-5 TE Connectivity PCB Connection Systems Image 1

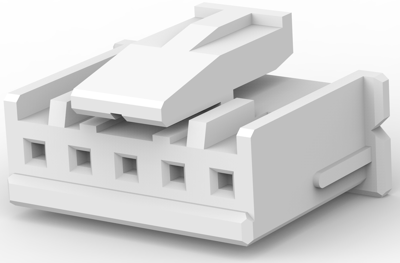

1744417-5 TE Connectivity PCB Connection Systems Image 2

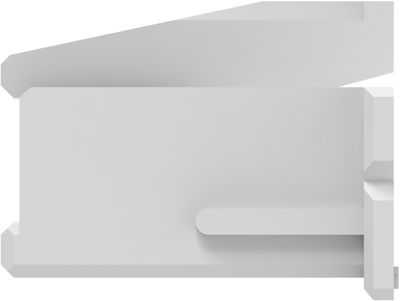

1744417-5 TE Connectivity PCB Connection Systems Image 3

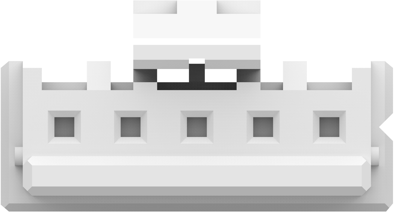

1744417-5 TE Connectivity PCB Connection Systems Image 4

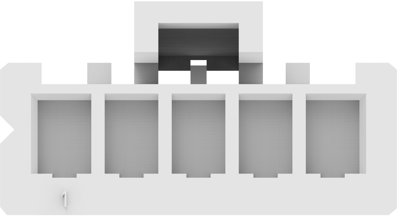

1744417-5 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0440 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
634.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
14400 pcs.
0.0440 €

PCB Connection System, 1744417-5, TE Connectivity

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 5
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 2.5 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Grid 2.5 mm
Pin number 5 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TH
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
