1744416-7 | TE Connectivity

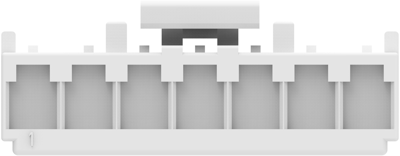

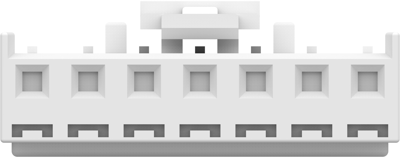

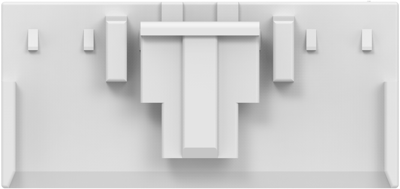

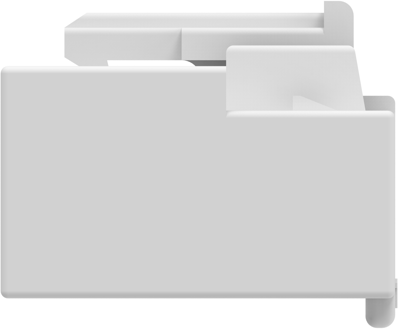

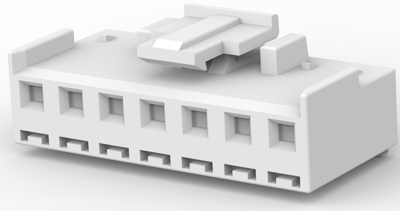

Socket header, 7 pole, pitch 3.96 mm, straight, natural, 1744416-7
Unit Price (€ / pc.)
0.5355 € *
Available: 0 pcs.
Available in 5 Days: 374 pcs.
Leadtime: 21 Weeks **
PCB Connection System, 1744416-7, TE Connectivity
Wire-to-Board, Wire & Cable, 7 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 7
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | crimp connection | |
| Breakable | No | |
| Number of rows | 1 | |
| Colour | natural | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Rated voltage | 600 V | |
| Pin number | 7 pole | |
| Orientation | straight | |
| Version | socket header | |
| Type of locking | Yes | |
| Grid | 3.96 mm |
Download
Logistics
| Customs tariff number | 85366910 |
| Country of origin | TH |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
