1744057-6 | TE Connectivity

Pin header, 6 pole, pitch 3.96 mm, straight, natural, 1744057-6

Order No.: 34P7178
EAN: 4099889914139
MPN:
1744057-6
Series: Economy Power

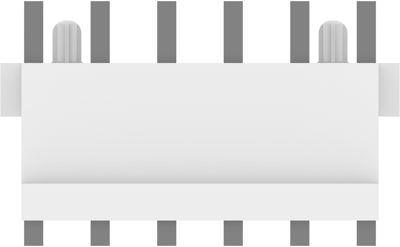

1744057-6 TE Connectivity PCB Connection Systems Image 1

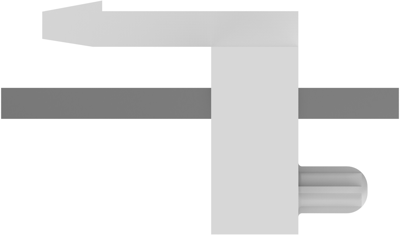

1744057-6 TE Connectivity PCB Connection Systems Image 2

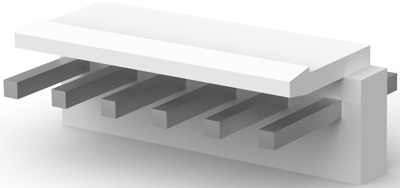

1744057-6 TE Connectivity PCB Connection Systems Image 3

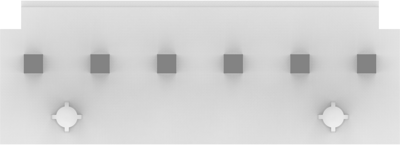

1744057-6 TE Connectivity PCB Connection Systems Image 4

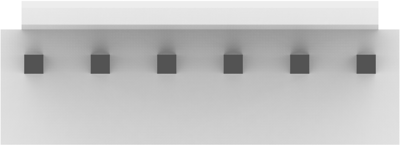

1744057-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
2,284.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.3808 €

PCB Connection System, 1744057-6, TE Connectivity

Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Brass
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Rated current: 8 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: With
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 6 pole
Grid 3.96 mm
Connection PCB connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 8 A
Additional parts equipped
Number of rows 1
Breakable No
Colour natural
Logistics
Country of origin TH
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
