1744036-3 | TE Connectivity

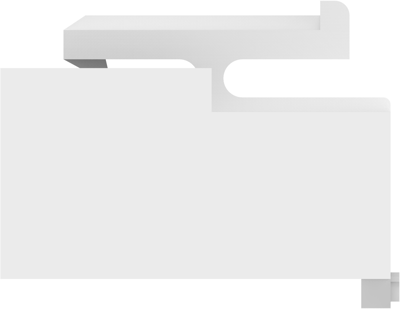

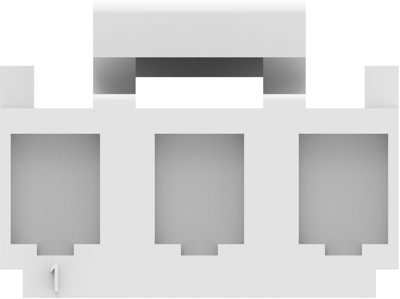

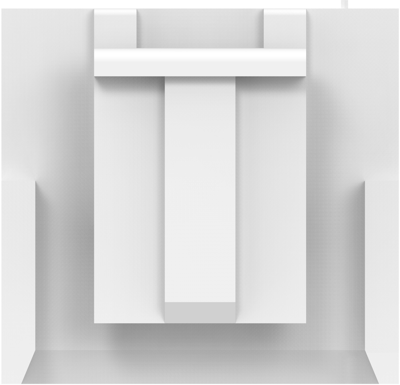

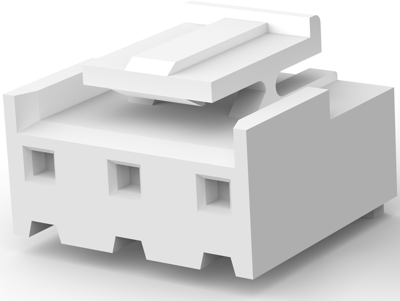

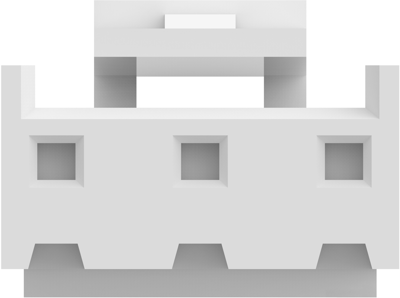

Socket header, 3 pole, pitch 5.08 mm, straight, natural, 1744036-3
Unit Price (€ / pc.)
0.1416 € *
Available in 5 Days: 1,230 pcs. - if ordered today
PCB Connection System, 1744036-3, TE Connectivity
Wire-to-Board, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 7.5 A
- Centerline (Pitch): 5.08 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact type | socket | |
| Additional parts | unequipped | |
| Colour | natural | |
| Rated current | 7.5 A | |
| Number of rows | 1 | |
| Connection | crimp connection | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Breakable | No | |
| Version | socket header | |
| Type of locking | Yes | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
