1734100-8 | TE Connectivity

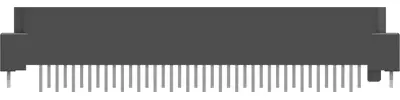

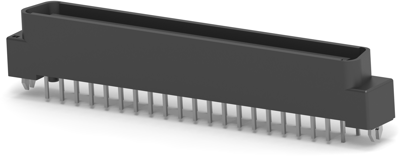

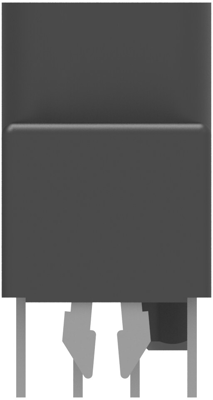

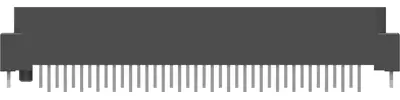

Pin header, 80 pole, pitch 1.27 mm, straight, black, 1734100-8
Unit Price (€ / pc.)
6.1285 € *
Available: 0 pcs.
Available in 5 Days: 814 pcs.
Leadtime: 12 Weeks **
Total Price:
6.13 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1285 €
10 pcs.
5.6287 €
50 pcs.
5.0694 €
100 pcs.
4.5577 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 1734100-8, AMP
Board-to-Board, Printed Circuit Board, Standard, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Matte
- Housing Color: black
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Insulation Resistance: 4 MΩ
- Centerline (Pitch): 1.27 mm
- PCB Mount Retention: With
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Version | Stiftleiste | |
| Contact type | Stift | |
| Pin number | 80-polig | |
| Grid | 1.27 mm | |
| Connection | Leiterplattenanschluss | |
| Orientation | gerade | |
| Type of locking | Ja | |
| contact surface | vergoldet | |
| Connection plating | verzinnt | |
| Rated voltage | 250 V | |
| Rated current | 1 A | |
| Additional parts | bestückt | |
| Number of rows | 4 | |
| Breakable | No | |
| Colour | schwarz |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
