1734098-8 | TE Connectivity

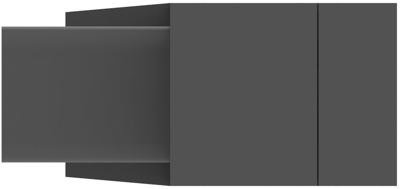

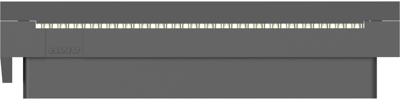

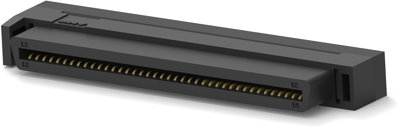

Socket header, 80 pole, pitch 1.27 mm, straight, black, 1734098-8
Unit Price (€ / pc.)
11.0908 € *
Standard delivery time from the manufacturer is: 11 Weeks
PCB Connection System, 1734098-8, TE Connectivity
Wire-to-Board, Wire & Cable, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Polyester
- Housing Color: black
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -35 – 85 °C [-31 – 185 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 1.27 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 80 pole | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | No | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 12 V | |
| Rated current | 1.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
