1586862-8 | TE Connectivity

Plug housing, 8 pole, pitch 4.2 mm, straight, white, 1586862-8

Order No.: 35P5566
EAN: 4099889939736
MPN:
1586862-8
Series: VAL-U-LOK

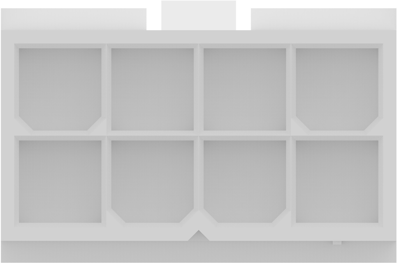

1586862-8 TE Connectivity PCB Connection Systems Image 1

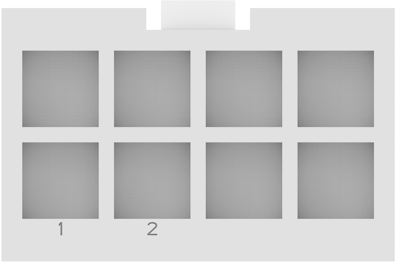

1586862-8 TE Connectivity PCB Connection Systems Image 2

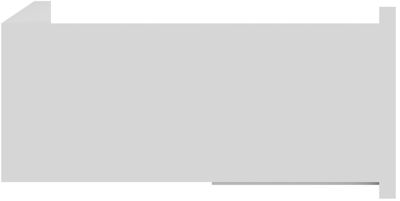

1586862-8 TE Connectivity PCB Connection Systems Image 3

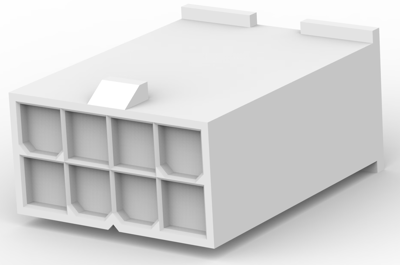

1586862-8 TE Connectivity PCB Connection Systems Image 4

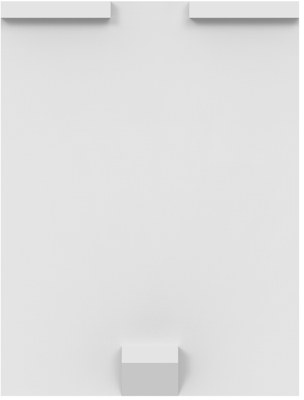

1586862-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3927 € *
Available in 5 Days: 836 pcs. - if ordered today
Total Price:
196.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
0.3927 €

PCB Connection System, 1586862-8, TE Connectivity

Wire-to-Wire, Wire & Cable, 8 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Polyamide
  • Housing Color: white
  • Number of positions: 8
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Connection crimp connection
Grid 4.2 mm
Number of rows 2
Version plug housing
Rated voltage 600 V
Type of locking Yes
Additional parts unequipped
Pin number 8 pole
Breakable No
Orientation straight
Contact type socket
Colour white
Logistics
Property Value
Country of origin CZ
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
