1586847-1 | TE Connectivity

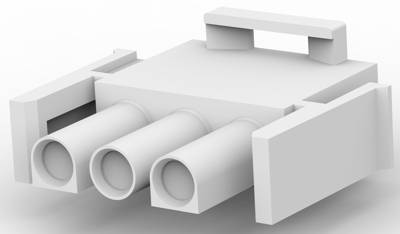

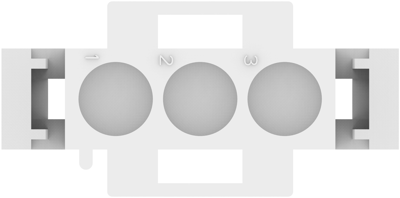

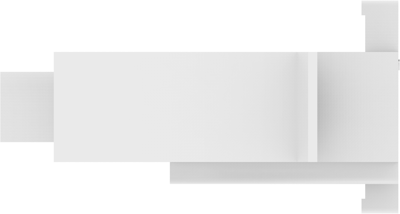

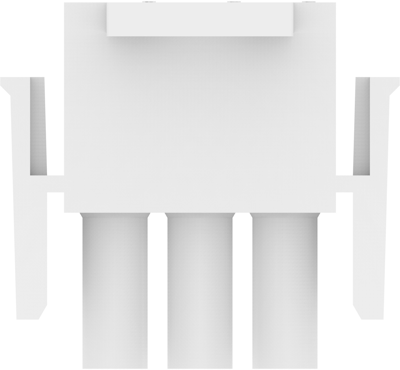

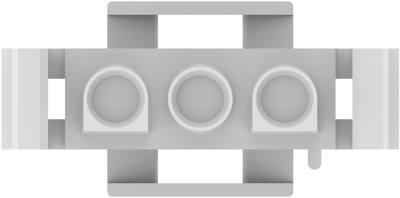

Plug housing, 3 pole, pitch 6.35 mm, straight, natural, 1586847-1
Unit Price (€ / pc.)
0.2678 € *
Available in 5 Days: 2,670 pcs. - if ordered today
PCB Connection System, 1586847-1, TE Connectivity
Wire-to-Board, Wire-to-Wire, Wire & Cable, 3 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Version | plug housing | |
| Breakable | No | |
| Orientation | straight | |
| Grid | 6.35 mm | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Contact type | socket/pin | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | crimp connection | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
