1565084-1 | TE Connectivity

Plug housing, 6 pole, pitch 3.5 mm, straight, natural, 1565084-1

Order No.: 34P8814
EAN: 4099889916638
MPN:
1565084-1

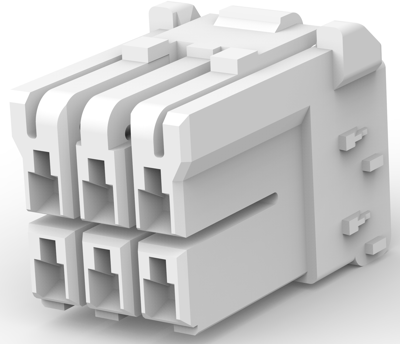

1565084-1 TE Connectivity PCB Connection Systems Image 1

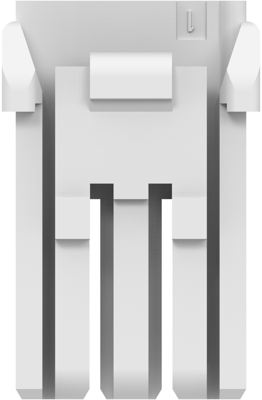

1565084-1 TE Connectivity PCB Connection Systems Image 2

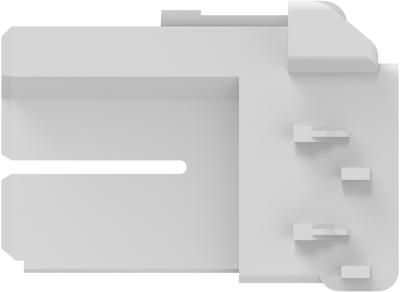

1565084-1 TE Connectivity PCB Connection Systems Image 3

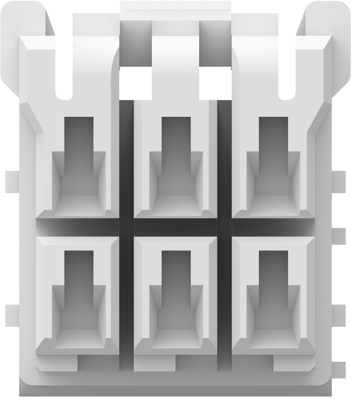

1565084-1 TE Connectivity PCB Connection Systems Image 4

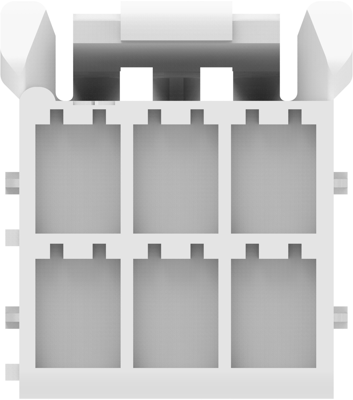

1565084-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
0.33 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3332 €
10 pcs.
0.3011 €
50 pcs.
0.2737 €
100 pcs.
0.2463 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1565084-1, TE Connectivity

Wire-to-Wire, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 66
  • Housing Color: natural
  • Number of positions: 6
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.5 mm
  • Row-to-Row Spacing: 4.8 mm [0.189 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Grid 3.5 mm
Pin number 6 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 300 V
Number of rows 2
Logistics
Country of origin JP
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
