1565083-1 | TE Connectivity

Plug housing, 4 pole, pitch 3.5 mm, straight, natural, 1565083-1

Order No.: 34P8809
EAN: 4099889916584
MPN:
1565083-1

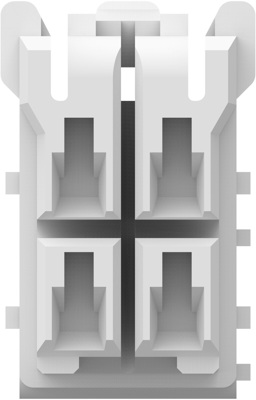

1565083-1 TE Connectivity PCB Connection Systems Image 1

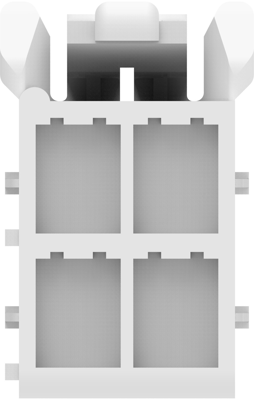

1565083-1 TE Connectivity PCB Connection Systems Image 2

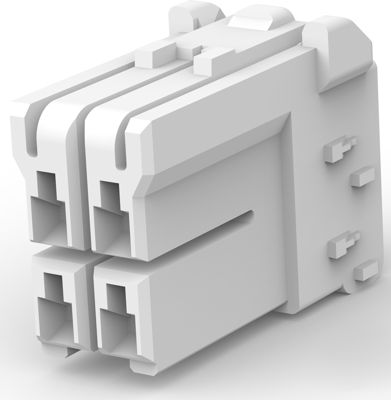

1565083-1 TE Connectivity PCB Connection Systems Image 3

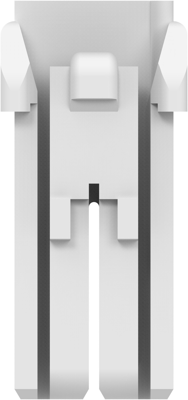

1565083-1 TE Connectivity PCB Connection Systems Image 4

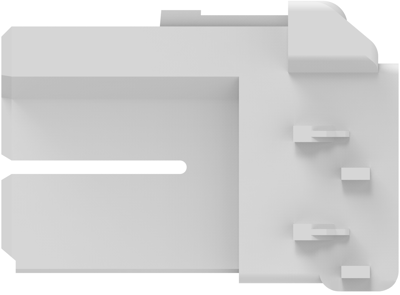

1565083-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0904 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
723.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
8000 pcs.
0.0904 €

PCB Connection System, 1565083-1, TE Connectivity

Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Centerline (Pitch): 3.5 mm
  • Row-to-Row Spacing: 4.8 mm [0.189 in]
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking Yes
Grid 3.5 mm
Pin number 4 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 300 V
Number of rows 2
Logistics
Country of origin JP
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
