1410971-3 | TE Connectivity

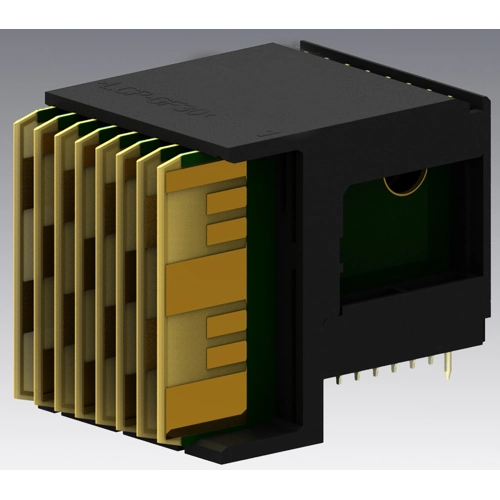

Pin header, 56 pole, pitch 1.8 mm, angled, black, 1410971-3
Unit Price (€ / pc.)
63.2842 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
PCB Connection System, 1410971-3, TE Connectivity
Board-to-Board, Printed Circuit Board, Right Angle, 56 Position
Technical Data
- Connector Mounting Type: Board Mount
- Orientation: angled
- Number of positions: 56
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 1 A
- Centerline (Pitch): 1.8 mm
- Row-to-Row Spacing: 1.35 mm [0.053 in]
Technical specifications
| Connection | press-fit | |
| Number of rows | 7 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Breakable | No | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 150 V | |
| Rated current | 1 A | |
| Orientation | angled | |
| Pin number | 56 pole | |
| Grid | 1.8 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
