1-928343-1 | TE Connectivity

Socket housing, 11 pole, pitch 5 mm, straight, natural, 1-928343-1

Order No.: 35P4204
EAN: 4099889932973
MPN:
1-928343-1

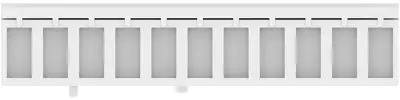

1-928343-1 TE Connectivity PCB Connection Systems Image 1

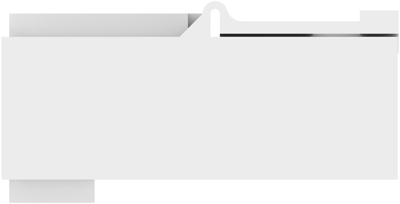

1-928343-1 TE Connectivity PCB Connection Systems Image 2

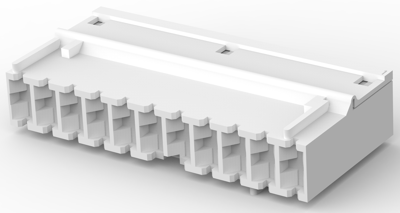

1-928343-1 TE Connectivity PCB Connection Systems Image 3

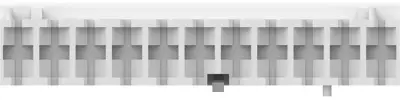

1-928343-1 TE Connectivity PCB Connection Systems Image 4

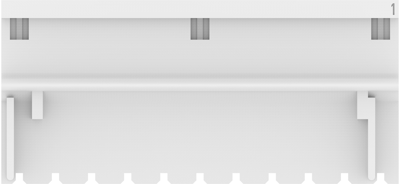

1-928343-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.0468 € *
Available in 5 Days: 1,077 pcs. - if ordered today
Total Price:
2.05 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0468 €
10 pcs.
1.8564 €
50 pcs.
1.6779 €
100 pcs.
1.5113 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-928343-1, TE Connectivity

Wire-to-Wire, Wire & Cable, 11 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: PA 6.6
  • Housing Color: natural
  • Number of positions: 11
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 5 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Colour natural
Breakable No
Type of locking No
Grid 5 mm
Pin number 11 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 150 V
Number of rows 1
Logistics
Country of origin US
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
