1-647676-1 | TE Connectivity

Pin header, 11 pole, pitch 3.96 mm, angled, white, 1-647676-1

Order No.: 71P3024
EAN: 4099891721749
MPN:
1-647676-1
Series: Economy Power

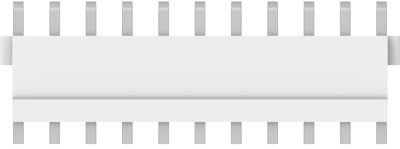

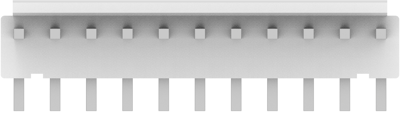

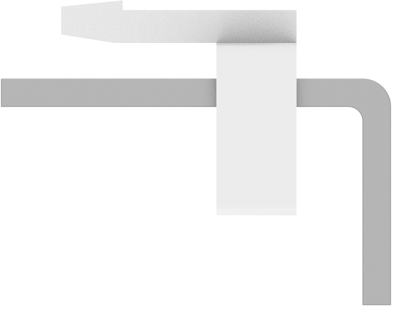

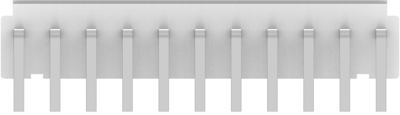

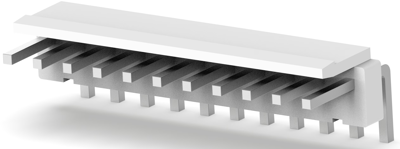

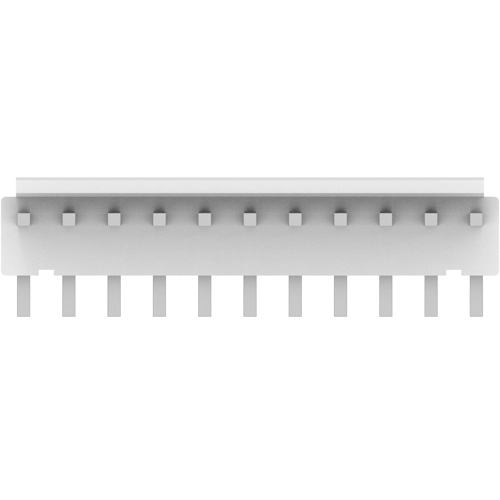

1-647676-1 TE Connectivity PCB Connection Systems Image 1
1-647676-1 TE Connectivity PCB Connection Systems Image 2
1-647676-1 TE Connectivity PCB Connection Systems Image 3
1-647676-1 TE Connectivity PCB Connection Systems Image 4
1-647676-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Available in 5 Days: 1,500 pcs. - if ordered today
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8330 €
10 pcs.
0.7735 €
25 pcs.
0.7140 €
50 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 1-647676-1, TE Connectivity

The 1-647676-1 is a economy power connector that is widely utilized for power circuit applications that require a large current carrying capacity. This product has end to end stackable and intermateable to similar competitive products for retrofit applications.

Features

  • Positive audible latch designed for easier mating and unmating
  • Asymmetrical terminals prevent mis-mating
  • Polarization tabs help prevent post misalignment

Applications

  • Household appliances
  • Industrial machinery
  • Commercial & building equipment
  • Vending machines & coin changers
  • Lighting
Technical specifications
Filter Property Value
Grid 3.96 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 7.5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour white
Pin number 11 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
