1-368575-4 | TE Connectivity

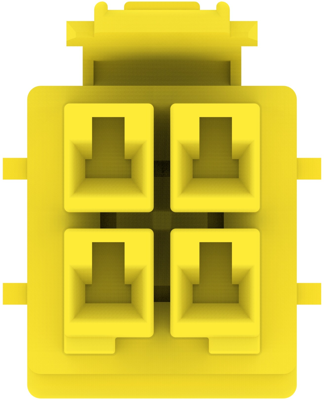

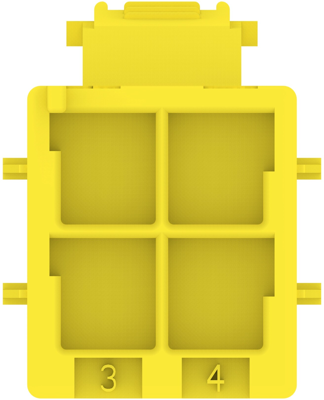

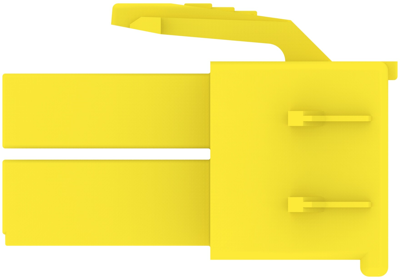

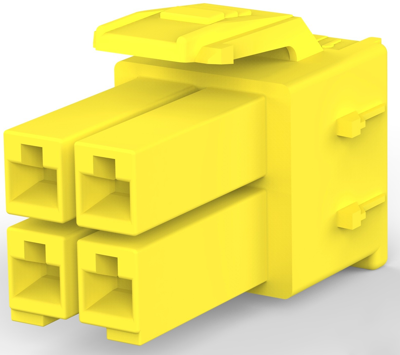

Socket header, 4 pole, pitch 3.96 mm, straight, yellow, 1-368575-4
Order No.: 34P6156
EAN: 4099889910766
MPN:
1-368575-4
Unit Price (€ / pc.)
0.4760 € *
Available: 0 pcs.
Available in 5 Days: 33,600 pcs.
Leadtime: 24 Weeks **
PCB Connection System, 1-368575-4, TE Connectivity
Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: PA 66
- Housing Color: yellow
- Number of positions: 4
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Centerline (Pitch): 3.96 mm
- Row-to-Row Spacing: 4.6 mm [0.181 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | yellow | |
| Breakable | No | |
| Type of locking | No | |
| Grid | 3.96 mm | |
| Pin number | 4 pole | |
| Version | socket header | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 300 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85472000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
