1-2825260-6 | TE Connectivity

Pin header, 16 pole, pitch 4.2 mm, straight, natural, 1-2825260-6

Order No.: 71P1744
EAN: 4099891719708
MPN:
1-2825260-6

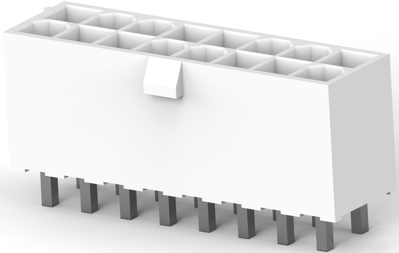

1-2825260-6 TE Connectivity PCB Connection Systems Image 1

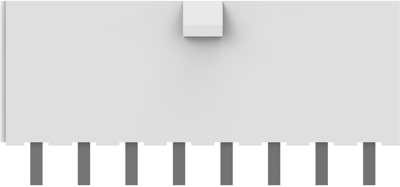

1-2825260-6 TE Connectivity PCB Connection Systems Image 2

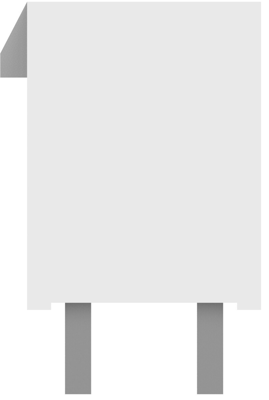

1-2825260-6 TE Connectivity PCB Connection Systems Image 3

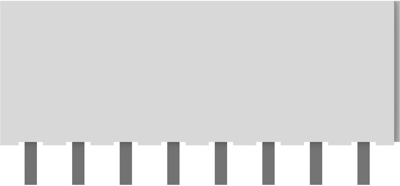

1-2825260-6 TE Connectivity PCB Connection Systems Image 4

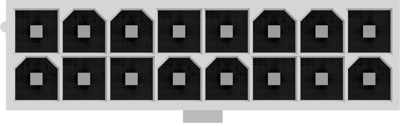

1-2825260-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4042 € *
Available in 5 Days: 1,650 pcs. - if ordered today
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4042 €
10 pcs.
1.2971 €
25 pcs.
1.2138 €
50 pcs.
1.0948 €
*incl. VAT plus shipping costs
Subject to prior sale

Power connector, 1-2825260-6, TE Connectivity

Rectangular power connector, Header, Plug, Wire-to-Board, 16 Position, 4.2 mm Centerline, Printed circuit board, UL 94V-0.

Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type pin
Connection plating tin-plated
contact surface tin-plated
Version pin header
Rated current 13 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour natural
Pin number 16 pole
Connection solder connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
