1-2367198-2 | TE Connectivity

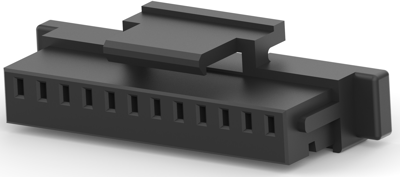

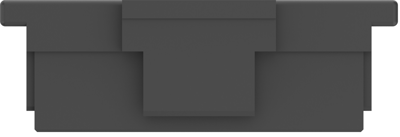

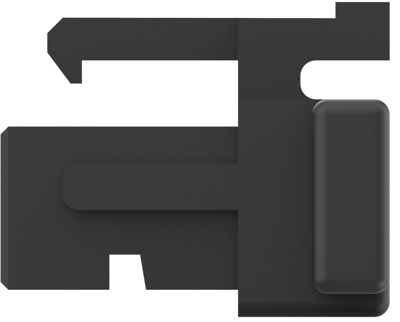

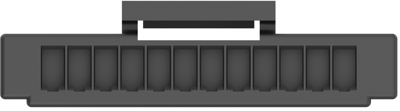

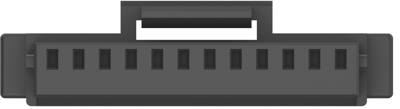

Plug/socket housing, 12 pole, pitch 1 mm, straight, black, 1-2367198-2
Order No.: 71P1685
EAN: 4099891719586
MPN:
1-2367198-2
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 27,227 pcs. - if ordered today
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7378 €
10 pcs.
0.6783 €
25 pcs.
0.6307 €
50 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale
Mount header, 1-2367198-2, TE Connectivity
The 1-2367198-2 offers vertical and horizontal (Right angle) connector mounting for versatility, and the square-peg technology enables product compatibility with industry standard products.
Features
- Polarized
- Square termination post
- Provides design flexibility
- Prevents stubbing contacts
Applications
- Business and retail equipment
- Consumer devices
- Industrial
- Automotive
- Medical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1 mm | |
| Contact type | socket | |
| Version | plug/socket housing | |
| Rated current | 2 A | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
