1-2367198-0 | TE Connectivity

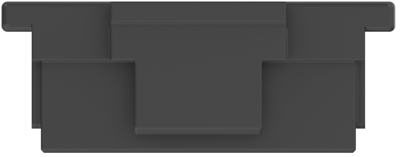

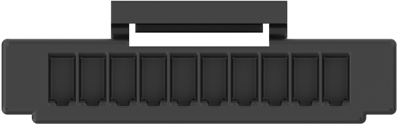

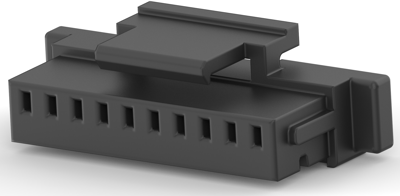

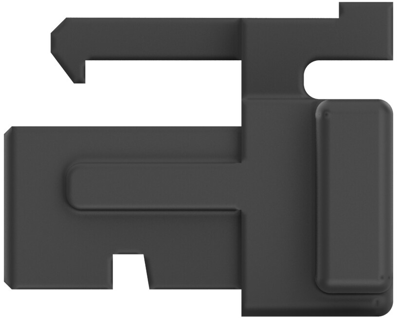

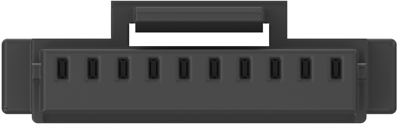

Plug/socket housing, 10 pole, pitch 1 mm, straight, black, 1-2367198-0
Order No.: 71P1683
EAN: 4099891719562
MPN:
1-2367198-0
Unit Price (€ / pc.)
0.5117 € *
Available in 5 Days: 33,600 pcs. - if ordered today
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4641 €
25 pcs.
0.4403 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale
Mount header, 1-2367198-0, TE Connectivity
The 1-2367198-0 offers vertical and horizontal (Right angle) connector mounting for versatility, and the square-peg technology enables product compatibility with industry standard products.
Features
- Polarized
- Square termination post
- Provides design flexibility
- Prevents stubbing contacts
Applications
- Business and retail equipment
- Consumer devices
- Industrial
- Automotive
- Medical
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1 mm | |
| Contact type | socket | |
| Connection | crimp connection | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 10 pole | |
| Colour | black | |
| Version | plug/socket housing | |
| Rated current | 2 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
