Deutsch

1-2349201-9 | TE Connectivity

Cage with integrated plug, 20 pole, pitch 0.6 mm, angled, 1-2349201-9

Order No.: 71P1669
EAN: 4099891633318
MPN:
1-2349201-9
Series: SFP56
TE Connectivity

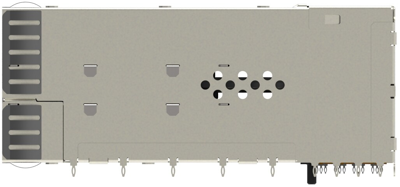

1-2349201-9 TE Connectivity PCB Connection Systems Image 1

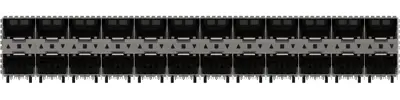

1-2349201-9 TE Connectivity PCB Connection Systems Image 2

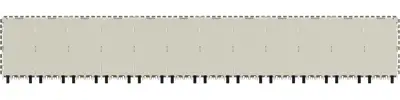

1-2349201-9 TE Connectivity PCB Connection Systems Image 3

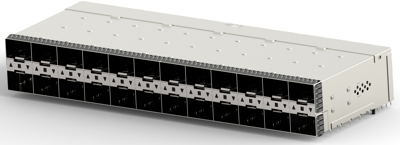

1-2349201-9 TE Connectivity PCB Connection Systems Image 4

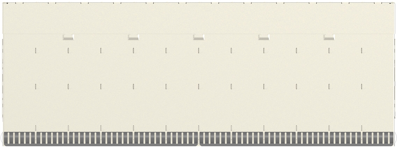

1-2349201-9 TE Connectivity PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version cage with integrated plug
Contact type socket
Pin number 20 pole
Grid 0.6 mm
Connection press-fit

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)
206.4412 € *
Available in 12 Days: 8 pcs. - if ordered today
Total Price:
206.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
206.4412 €
Description
Technical specifications
Download
Logistics
Compliance

Cage assembly, 1-2349201-9, TE Connectivity

SFP, Cage assembly with integrated connector, Data rate (max) 56 Gb/s, Internal/External EMI springs.
Technical specifications
Version cage with integrated plug
Contact type socket
Pin number 20 pole
Grid 0.6 mm
Connection press-fit
Orientation angled
Additional parts equipped
Number of rows 2
Articles of same specification 0
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
