1-2329463-4 | TE Connectivity

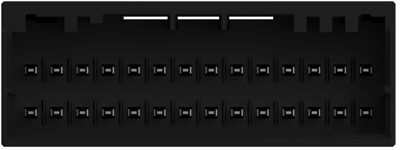

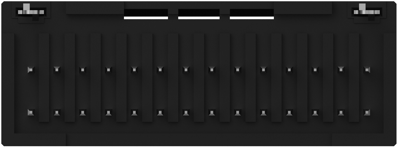

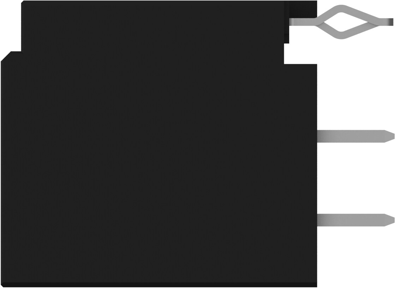

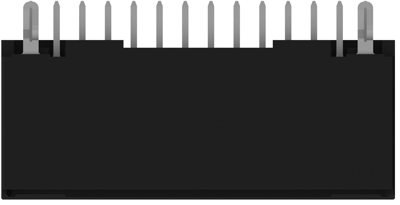

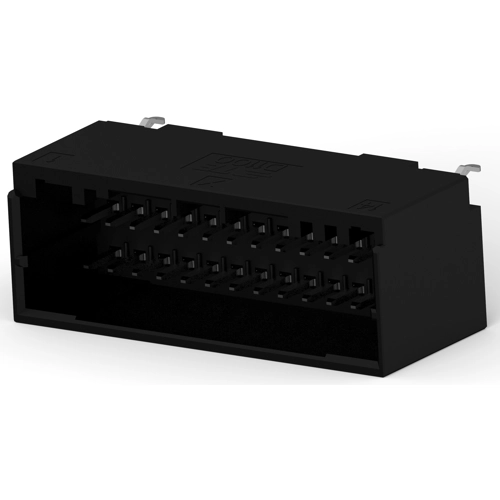

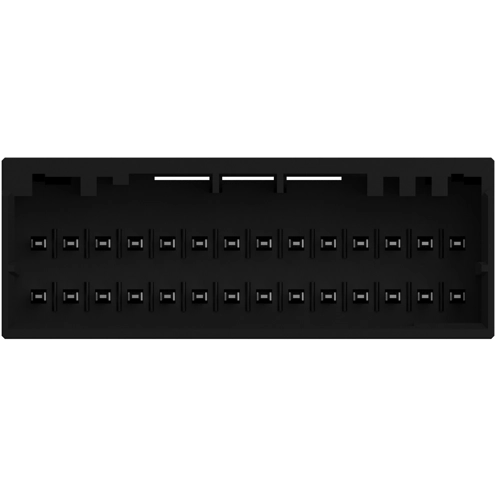

Pin header, 28 pole, pitch 2 mm, straight, black, 1-2329463-4
Unit Price (€ / pc.)
4.4863 € *
Available in 5 Days: 2,955 pcs. - if ordered today
Total Price:
201.88 € *
Price list
Quantity
Price per unit*
45 pcs.
4.4863 €
150 pcs.
4.4030 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1-2329463-4, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 28 Position, 2 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | solder connection | |
| Connection plating | tin-plated | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Type of locking | Yes | |
| Pin number | 28 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
