1-2329463-1 | TE Connectivity
Pin header, 22 pole, pitch 2 mm, straight, black, 1-2329463-1
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Available in 5 Days: 2,822 pcs.
Leadtime: 17 Weeks **
Total Price:
287.60 € *
Price list
Quantity
Price per unit*
76 pcs.
3.7842 €
209 pcs.
3.7128 €
*incl. VAT plus shipping costs
**Subject to prior sale

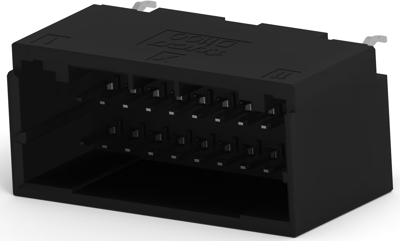

Pin header, 1-2329463-1, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 22 Position, 2 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Connection | Lötanschluss | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 125 V | |
| Rated current | 3 A | |
| Orientation | gerade | |
| Pin number | 22-polig | |
| Grid | 2 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
