1-2316102-2 | TE Connectivity

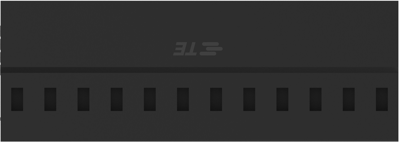

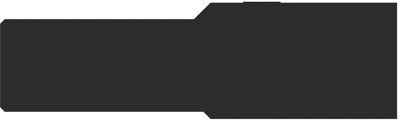

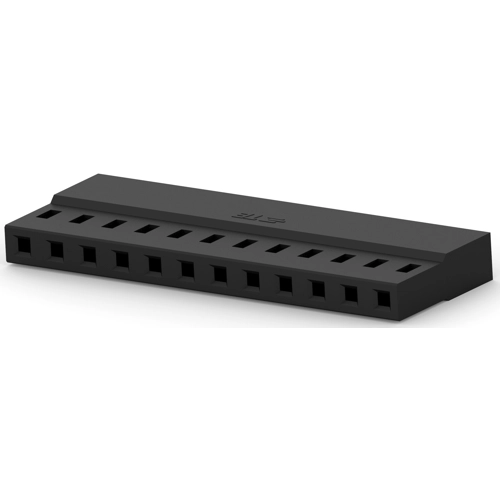

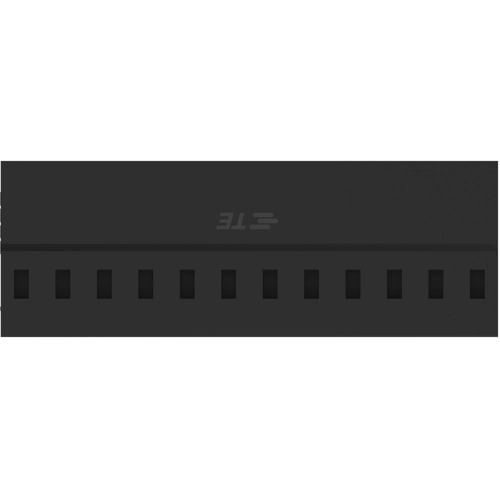

Socket housing, 12 pole, pitch 2 mm, straight, black, 1-2316102-2
Unit Price (€ / pc.)
0.7140 € *
Available in 5 Days: 7,200 pcs. - if ordered today
Total Price:
3.57 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7140 €
10 pcs.
0.6545 €
25 pcs.
0.6069 €
50 pcs.
0.5593 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket header, 1-2316102-2, TE Connectivity
The 1-2316102-2 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.
Applications
- Servo Drives
- Industrial Controls
- Material Handling
- Instrumentation and Test Equipment
- Building Automation
- PLC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 2 A | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Type of locking | No | |
| Number of rows | 1 | |
| Colour | black | |
| Pin number | 12 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
