1-2314822-2 | TE Connectivity

Socket header, 12 pole, pitch 2 mm, straight, black, 1-2314822-2

Order No.: 71P1530
MPN:
1-2314822-2
Series: 3SBH

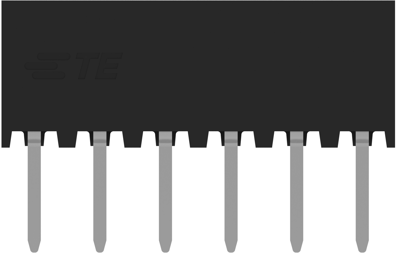

1-2314822-2 TE Connectivity PCB Connection Systems Image 1

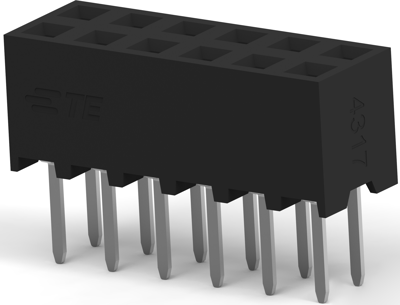

1-2314822-2 TE Connectivity PCB Connection Systems Image 2

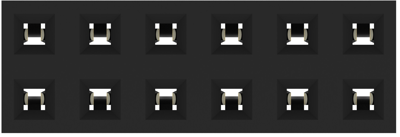

1-2314822-2 TE Connectivity PCB Connection Systems Image 3

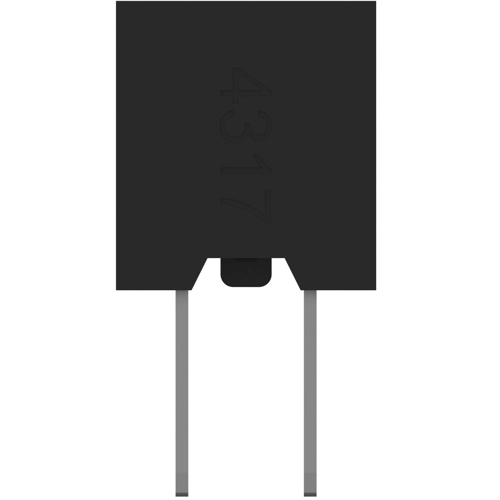

1-2314822-2 TE Connectivity PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
2.5585 € *
Available: 87 pcs.
Available in 5 Days: 2,160 pcs. - if ordered today
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
10 pcs.
2.3800 €
25 pcs.
2.2253 €
50 pcs.
2.0230 €
*incl. VAT plus shipping costs
Subject to prior sale

Socket header, 1-2314822-2, TE Connectivity

The 1-2314822-2 is a PCB Mount receptacle, housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic. The receptacle assembly employ phosphor bronze contact with dual cantilever beams and built-in anti-overstress. This feature provides superior electrical performance as well as excellent solderability.

Applications

  • Servo Drives
  • Industrial Controls
  • Material Handling
  • Instrumentation and Test Equipment
  • Building Automation
  • PLC
Technical specifications
Filter Property Value
Additional parts equipped
Version socket header
Pin number 12 pole
Grid 2 mm
contact surface gold-plated
Number of rows 2
Rated current 2 A
Colour black
Connection plating tin-plated
Contact type socket
Connection solder connection
Rated voltage 125 V
Type of locking Yes
Orientation straight
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
