1-2213614-3 | TE Connectivity

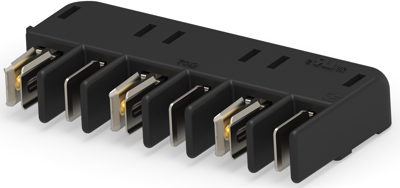

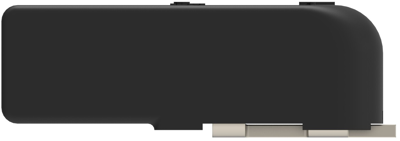

Connector, 6 pole, pitch 4 mm, angled, black, 1-2213614-3
Order No.: 71P1378
EAN: 4099891718770
MPN:
1-2213614-3
Unit Price (€ / pc.)
3.3558 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 1 Week **
Total Price:
3.36 € *
Price list
Quantity
Price per unit*
30 pcs.
3.3558 €
150 pcs.
3.1535 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Mount hermaphroditic connector, 1-2213614-3, TE Connectivity
The 1-2213614-3 is suitable for harsh environments where moisture and high vibration may be present. This product provides power to the first LED Printed circuit board and between adjacent LED Printed circuit boards in a linear lighting fixture.
Features
- Low profile, flat design with rounded corners eliminate shadowing
- Board to board connectors mate to themselves vertically and horizontally to simplify assembly and service
Applications
- LED lighting modules
- LED lighting strips
- Channel lettering
- Commercial refrigeration LED lighting
- Rail, bus and airplane LED lighting
Technical specifications
| Connection | SMD | |
| Number of rows | 1 | |
| Version | connector | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | socket/pin | |
| contact surface | gold-plated | |
| Rated current | 6 A | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Grid | 4 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
