1-2198346-9 | TE Connectivity

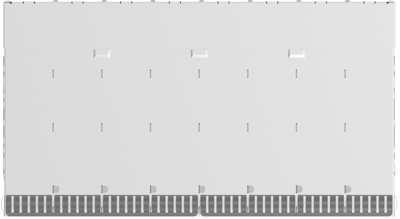

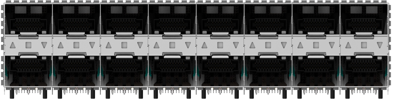

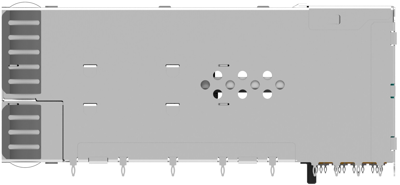

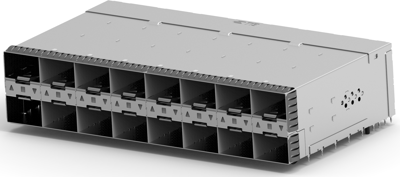

Cage with integrated plug, 320 pole, pitch 0.8 mm, angled, 1-2198346-9
Order No.: 71P1364
EAN: 4099891633240
MPN:
1-2198346-9
Unit Price (€ / pc.)
253.6723 € *
Available in 5 Days: 4 pcs. - if ordered today
Surface-Mount connector, 1-2198346-9, TE Connectivity
The 1-2198346-9 is a single-channel I/O connector, establishing a progressive path to higher speeds-an upgradeability that can result in longterm cost savings as this would eliminate the need to fully redesign for higher performance. This product has coupled, narrow-edged, blanked- and formed-contact beam geometry and insert molding for superior signal integrity, mechanical and electrical performance.
Features
- Surface-mount connector design for single high 1xN cages
- Heat sinks, LEDs and plating choices
Applications
- Telecommunication
- Data center
- Medical
- Networking
- Test and Measurement Equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | press-fit | |
| Number of rows | 2 | |
| Orientation | angled | |
| Grid | 0.8 mm | |
| Pin number | 320 pole | |
| Contact type | socket | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | cage with integrated plug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
