1-2132781-0 | TE Connectivity

Socket header, 10 pole, pitch 3.96 mm, straight, natural, 1-2132781-0

Order No.: 34P7255
EAN: 4099889914801
MPN:
1-2132781-0
Series: Economy Power

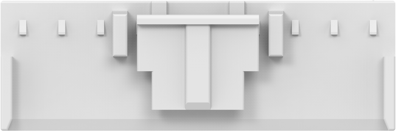

1-2132781-0 TE Connectivity PCB Connection Systems Image 1

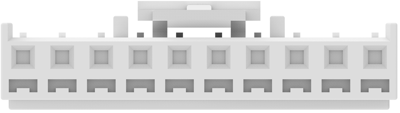

1-2132781-0 TE Connectivity PCB Connection Systems Image 2

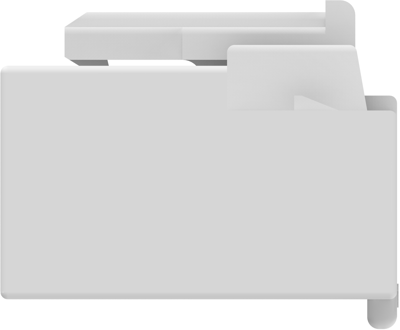

1-2132781-0 TE Connectivity PCB Connection Systems Image 3

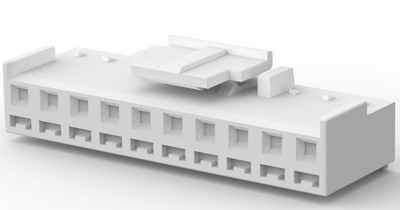

1-2132781-0 TE Connectivity PCB Connection Systems Image 4

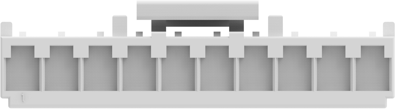

1-2132781-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4284 € *
Available in 5 Days: 21,500 pcs. - if ordered today
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4284 €
10 pcs.
0.3927 €
25 pcs.
0.3689 €
50 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-2132781-0, TE Connectivity

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 6.5 A
  • Centerline (Pitch): 3.96 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 3.96 mm
Breakable No
Contact type socket
Version socket header
Rated current 6.5 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour natural
Pin number 10 pole
Connection crimp connection
Logistics
Property Value
Country of origin IN
Customs tariff number 85389011
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
