1-2129334-1 | TE Connectivity

Plug housing, 3 pole, pitch 4.65 mm, straight, yellow, 1-2129334-1

Order No.: 36P8997
EAN: 4099889949032
MPN:
1-2129334-1

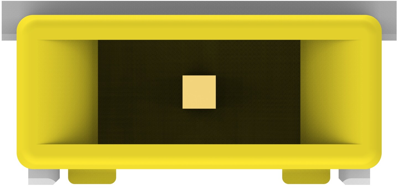

1-2129334-1 TE Connectivity PCB Connection Systems Image 1

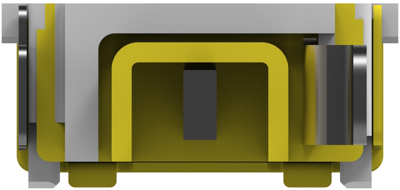

1-2129334-1 TE Connectivity PCB Connection Systems Image 2

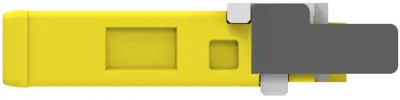

1-2129334-1 TE Connectivity PCB Connection Systems Image 3

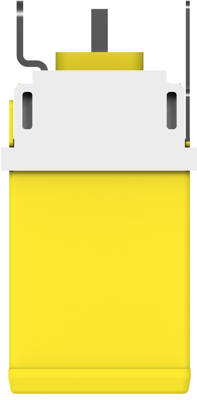

1-2129334-1 TE Connectivity PCB Connection Systems Image 4

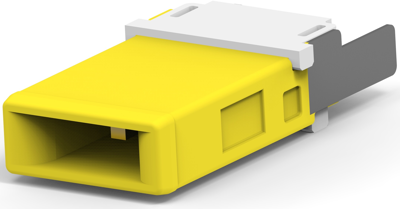

1-2129334-1 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
21,349.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
12288 pcs.
1.7374 €

PCB Connection System, 1-2129334-1, TE Connectivity

Cable-to-Board, Wire & Cable, 3 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: yellow
  • Number of positions: 3
  • Operating Temperature Range: -40 – 85 °C [-40 – 185 °F]
  • Rated current: 12.5 A
  • Sealable: No
Technical specifications
Version plug housing
Contact type pin
Pin number 3 pole
Grid 4.65 mm
Connection PCB connection
Orientation straight
Type of locking No
contact surface gold-plated
Connection plating tin-plated
Rated voltage 25 V
Rated current 12.5 A
Additional parts equipped
Number of rows 1
Breakable No
Colour yellow
Logistics
Country of origin TH
Customs tariff number 85369001
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
