1-2106431-2 | TE Connectivity
Connector, 2 pole, pitch 0.16 mm, straight, natural, 1-2106431-2
Order No.: 71P1210
EAN: 4099891718602
MPN:
1-2106431-2
Unit Price (€ / pc.)
0.8806 € *
Available in 5 Days: 55,038 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

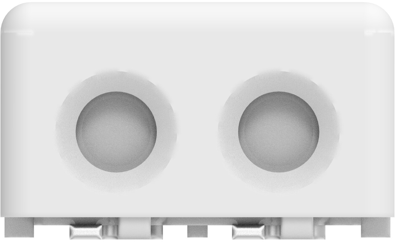

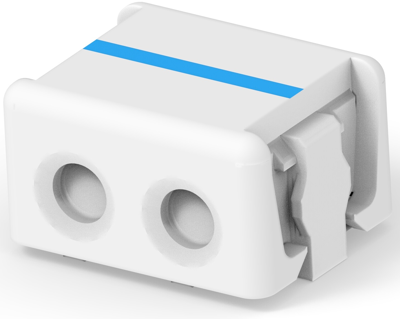

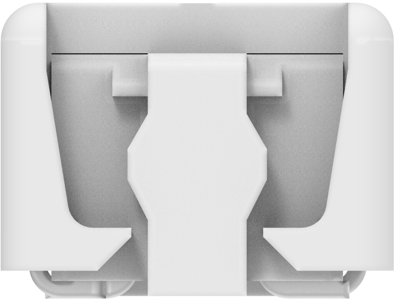

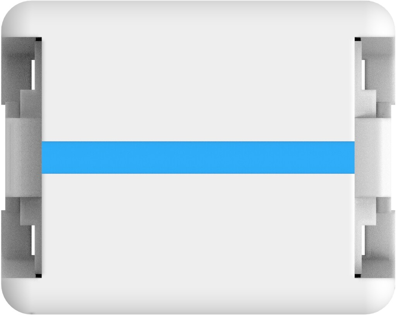

Connector assembly, 1-2106431-2, TE Connectivity
The 1-2106431-2 is designed for quick, tool-less termination of discrete solid and stranded wire leads to metal clad boards used in LED applications and FR4 boards used in thru-hole non-LED lighting applications. Integral cover provides wire entry location and when fully seated wire leads are secured in dual IDC slots ensures electrical connections.
Features
- Insulation displacement eliminates the need to pre-strip wire insulation prior to “tool-less” termination
- Integral cover provides a robust, mechanical strain relieved connection in high vibration applications
- Wire placement viewing window and wire gauge color coded housings assist in error free assembly
Applications
- LED lighting
- HVAC controls
- Fire and Security controls
- Household Appliances
- Power Tools
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 0.16 mm | |
| contact surface | tin-plated | |
| Version | connector | |
| Rated current | 7.5 A | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 2 pole | |
| Connection | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
