1-2058299-1 | TE Connectivity

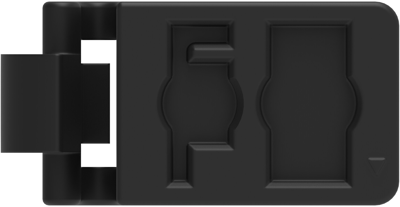

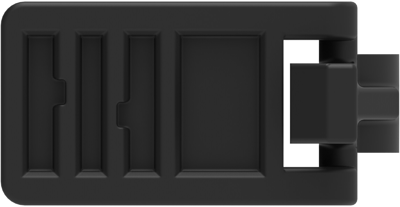

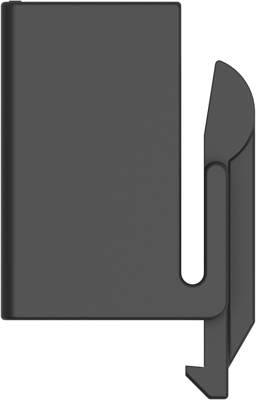

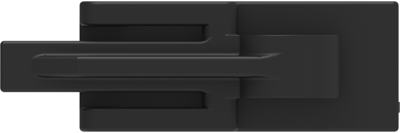

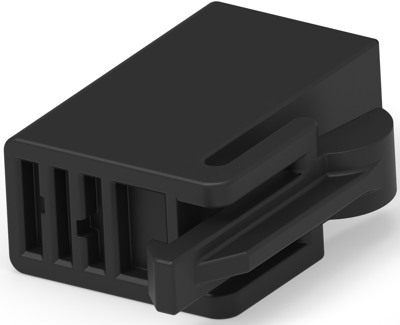

Plug housing, 2 pole, pitch 4 mm, straight, black, 1-2058299-1
Order No.: 37P8473
EAN: 4099889972573
MPN:
1-2058299-1
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 117,000 pcs. - if ordered today
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.9044 €
50 pcs.
0.8092 €
100 pcs.
0.7259 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 1-2058299-1, TE Connectivity
Wire-to-Board, Wire & Cable, 2 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PBT GF
- Housing Color: black
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C
- Centerline (Pitch): 4 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Breakable | No | |
| Type of locking | Yes | |
| Rated current | 6 A | |
| Grid | 4 mm | |
| Pin number | 2 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 125 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85472000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
