1-2040586-1 | TE Connectivity
Connector, straight, 1-2040586-1
Unit Price (€ / pc.)
1.5470 € *
Available in 5 Days: 16,635 pcs. - if ordered today
Total Price:
7.74 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5470 €
10 pcs.
1.4280 €
25 pcs.
1.3328 €
50 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale

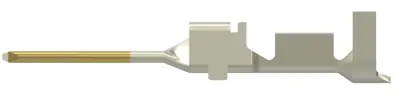

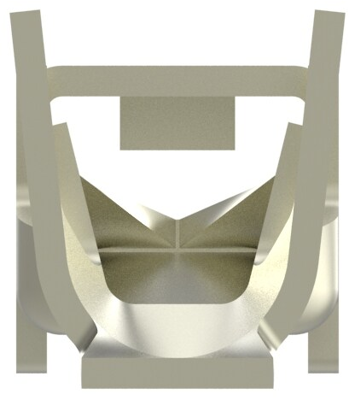

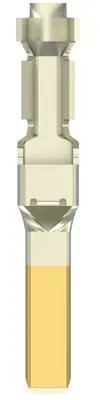

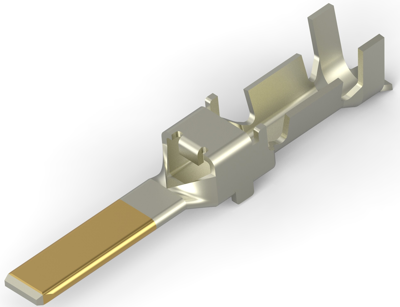

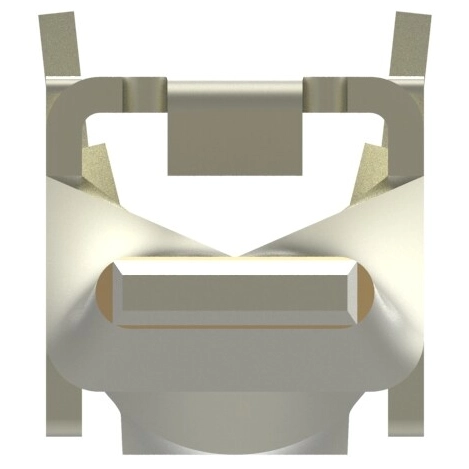

Tab contact, 1-2040586-1, TE Connectivity
Connector contact, Tab, Component-to-Wire, 20-16 AWG Wire size, 0.5-1.42 mm² Wire size, Gold, Reel & Box, Wire & Cable, 24 A.
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | tab | |
| contact surface | gold-plated | |
| Version | connector | |
| Rated current | 24 A | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
