1-2040558-6 | TE Connectivity

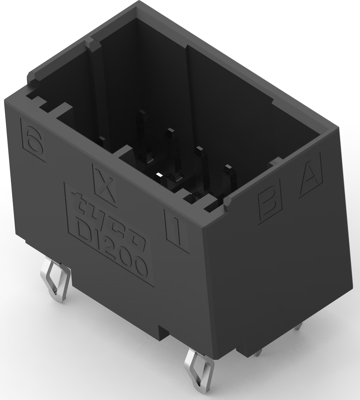

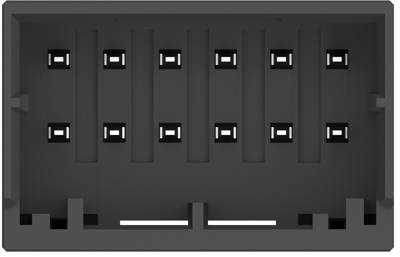

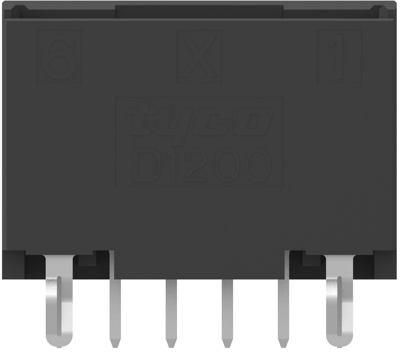

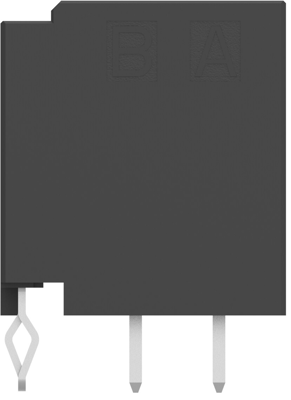

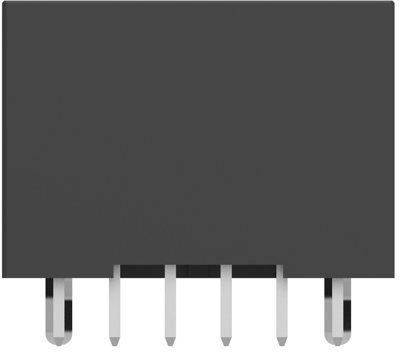

Connector, 12 pole, pitch 2.5 mm, straight, black, 1-2040558-6
Unit Price (€ / pc.)
3.3677 € *
Available in 5 Days: 840 pcs. - if ordered today
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.1297 €
25 pcs.
2.9155 €
50 pcs.
2.6537 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 1-2040558-6, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 12 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder
Applications
- Industrial Control
- Production Equipment
- Servo Drives
- Power Distribution
- Industrial Process Controls
- Numeric Controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| contact surface | tin-plated | |
| Colour | black | |
| Additional parts | equipped | |
| Contact type | tab | |
| Connection plating | tin-plated | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Connection | solder connection | |
| Pin number | 12 pole | |
| Version | connector | |
| Type of locking | Yes | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
