1-1971922-3 | TE Connectivity

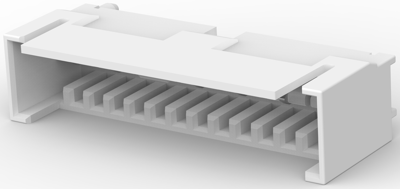

Pin header, 13 pole, pitch 2.5 mm, straight, natural, 1-1971922-3
Order No.: 35P4116
EAN: 4099889932553
MPN:
1-1971922-3
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9996 € *
Standard delivery time from the manufacturer is: 23 Weeks
Pin header, 1-1971922-3, TE
PCB Mount Header, Vertical, Wire-to-Board, 13-Positions, 5 mm Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Natural.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 13 pole | |
| Grid | 2.5 mm | |
| Connection | PCB connection | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 2 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
