1-1971905-6 | TE Connectivity

Plug housing, 12 pole, pitch 3.3 mm, straight, natural, 1-1971905-6

Order No.: 34P8786
EAN: 4099889916379
MPN:
1-1971905-6

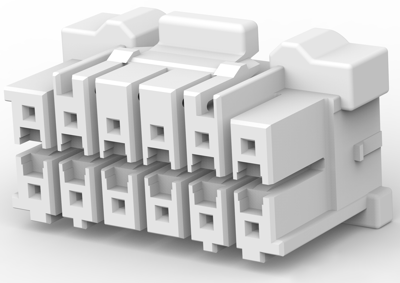

1-1971905-6 TE Connectivity PCB Connection Systems Image 1

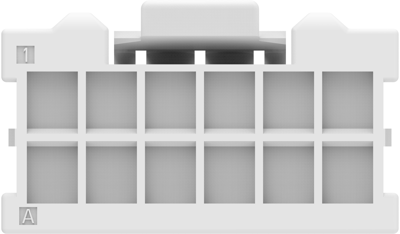

1-1971905-6 TE Connectivity PCB Connection Systems Image 2

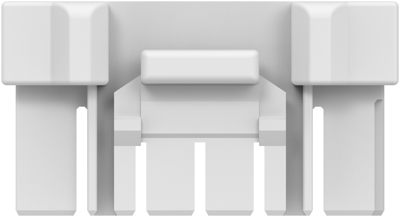

1-1971905-6 TE Connectivity PCB Connection Systems Image 3

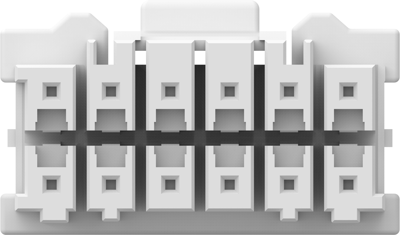

1-1971905-6 TE Connectivity PCB Connection Systems Image 4

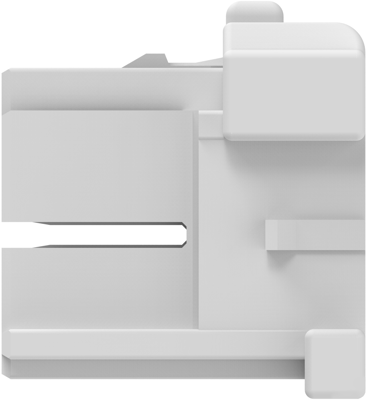

1-1971905-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available in 5 Days: 218,500 pcs. - if ordered today
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.4284 €
50 pcs.
0.3808 €
100 pcs.
0.3332 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1971905-6, TE Connectivity

Wire-to-Board, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: PA 66 GF
  • Housing Color: natural
  • Number of positions: 12
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 4 A
  • Centerline (Pitch): 3.3 mm
  • Row-to-Row Spacing: 5.2 mm [0.205 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Version plug housing
Contact type socket
Pin number 12 pole
Grid 3.3 mm
Connection crimp connection
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 250 V
Rated current 4 A
Additional parts unequipped
Number of rows 2
Breakable No
Colour natural
Logistics
Country of origin CZ
Customs tariff number 85472000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
