1-1971875-3 | TE Connectivity

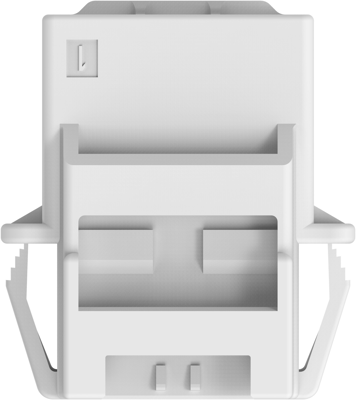

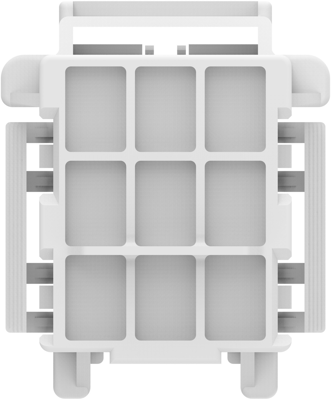

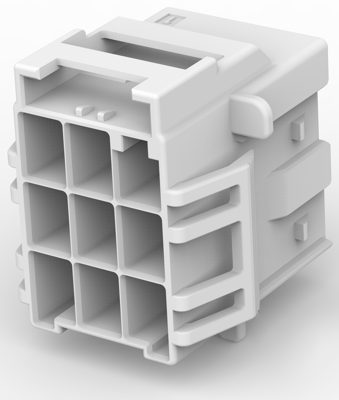

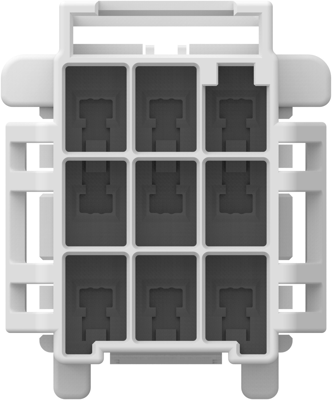

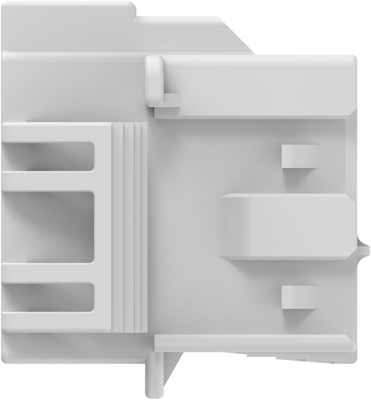

Socket housing, 9 pole, pitch 6 mm, straight, natural, 1-1971875-3
Unit Price (€ / pc.)
0.6664 € *
Available in 5 Days: 25,120 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6664 €
10 pcs.
0.6188 €
25 pcs.
0.5712 €
50 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle housing, front panel mount, triple-row.
Housing lock CPA, flame retardant to UL 94 V-0, for applications with higher current and signal levels, increased functional safety by means of 3 types of locking mechanism, snap-lock (with acoustic feedback when snapped in securely, side fins around the snap-lock elements to prevent pinching of the wires), optional housing lock (CPA) and optional contact lock (TPA), 6.0 mm grid, single/double row or matrix. Rated voltage: 600 V AC/DC. Rated current: max. 20 A. Housing material: PBT, UL 94 V-0. Contacts: tinned copper alloy. Operating temperatures: - 55 to +105 °C. Certifications: cURus.
Technical attributes (type, dimensions (A,B,C)): 1-1971875-3, 9-pole, 21.7 mm, 27.5 mm, 19.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 6 mm | |
| Pin number | 9 pole | |
| Colour | natural | |
| Contact type | tab | |
| Version | socket housing | |
| Connection | crimp connection | |
| Additional parts | unequipped | |
| Number of rows | 3 | |
| Rated voltage | 600 V | |
| Breakable | No | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
