1-1971773-4 | TE Connectivity

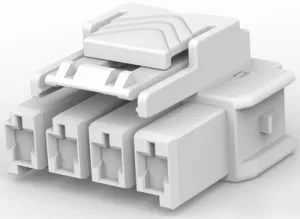

Plug housing, 4 pole, pitch 6 mm, straight, natural, 1-1971773-4

Order No.: 71F306
EAN: 4099891008567
MPN:
1-1971773-4

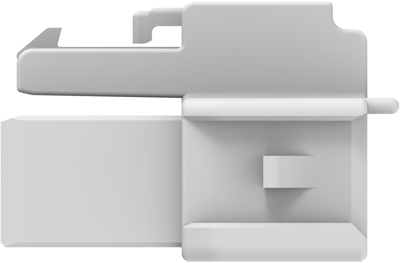

1-1971773-4 TE Connectivity PCB Connection Systems Image 1

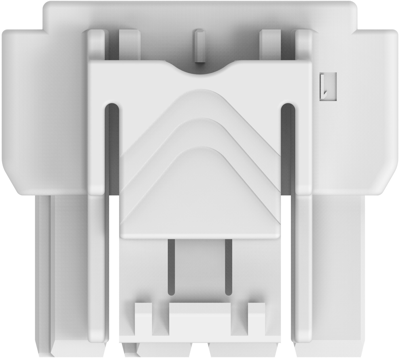

1-1971773-4 TE Connectivity PCB Connection Systems Image 2

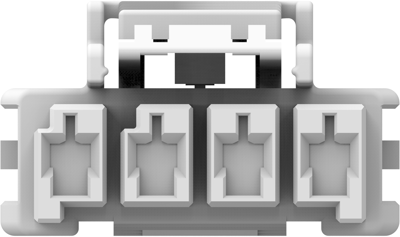

1-1971773-4 TE Connectivity PCB Connection Systems Image 3

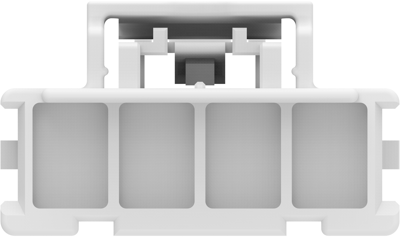

1-1971773-4 TE Connectivity PCB Connection Systems Image 4

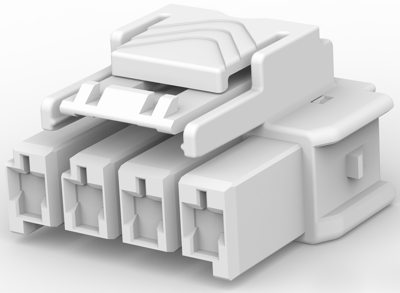

1-1971773-4 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.4998 € *
Available: 300 pcs.
Available in 5 Days: 15,150 pcs. - if ordered today
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
10 pcs.
0.4522 €
50 pcs.
0.3927 €
100 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row tab housings, bare.

Flame retardant to UL 94 V-0, for applications with higher current and signal levels, increased functional safety by means of 3 types of locking mechanism, snap-lock (with acoustic feedback when snapped in securely, side fins around the snap-lock elements to prevent pinching of the wires), optional housing lock (CPA) and optional contact lock (TPA), 6.0 mm grid, single/double row or matrix. Rated voltage: 600 V AC/DC.Rated current: max. 20 A. Housing material: PBT, UL 94 V-0. Contacts: tinned copper alloy. Operating temperatures: - 55 to +105 °C. Certifications: cURus.

Technical attributes (type, dimensions (A, B)): 1-1971773-4, 4-pole, 27.7 mm, 22 mm

Technical specifications
Orientation straight
Rated voltage 600 V
Breakable No
Type of locking Yes
Grid 6 mm
Version plug housing
Additional parts unequipped
Connection crimp connection
Number of rows 1
Contact type socket
Pin number 4 pole
Colour natural
Logistics
Customs tariff number 85472000
Country of origin IN
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
