1-1971032-4 | TE Connectivity

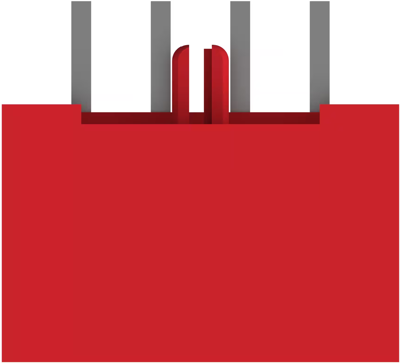

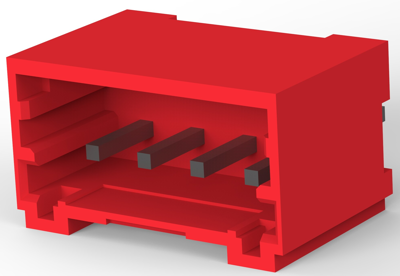

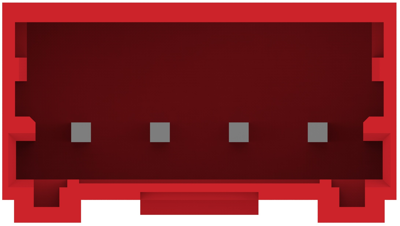

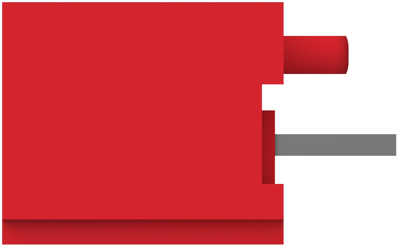

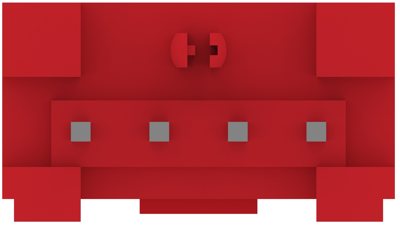

Connector, 4 pole, pitch 2 mm, straight, red, 1-1971032-4
Unit Price (€ / pc.)
0.3451 € *
Available in 5 Days: 6,600 pcs. - if ordered today
Total Price:
1.73 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3451 €
10 pcs.
0.3213 €
25 pcs.
0.2999 €
50 pcs.
0.2713 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 1-1971032-4, TE Connectivity
PCB Mount header, Vertical, Wire-to-Board, 4 Position, 2 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | tab | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | connector | |
| Rated current | 2.2 A | |
| Rated voltage | 50 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | red | |
| Pin number | 4 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
