1-1971032-2 | TE Connectivity

Pin header, 2 pole, pitch 2 mm, straight, red, 1-1971032-2

Order No.: 34P8829
EAN: 4099889916690
MPN:
1-1971032-2

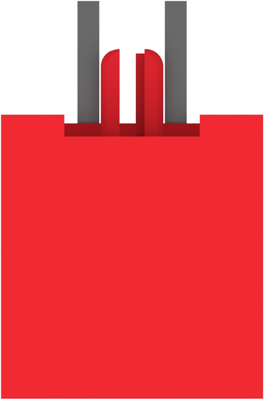

1-1971032-2 TE Connectivity PCB Connection Systems Image 1

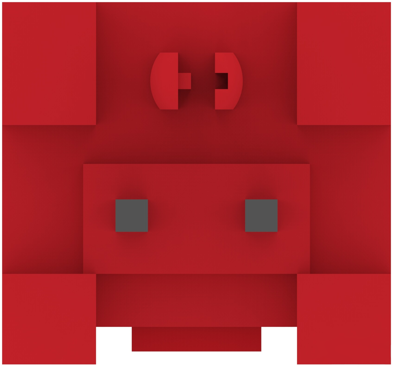

1-1971032-2 TE Connectivity PCB Connection Systems Image 2

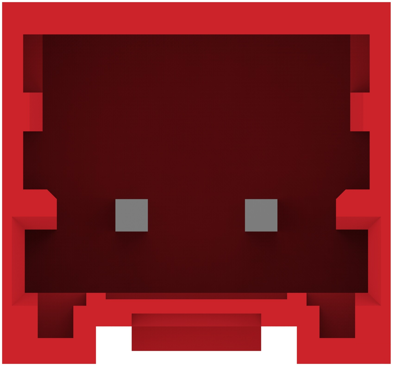

1-1971032-2 TE Connectivity PCB Connection Systems Image 3

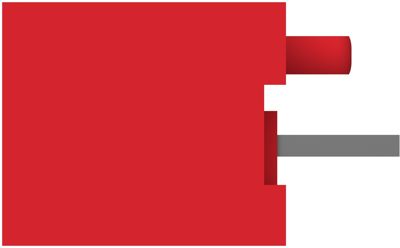

1-1971032-2 TE Connectivity PCB Connection Systems Image 4

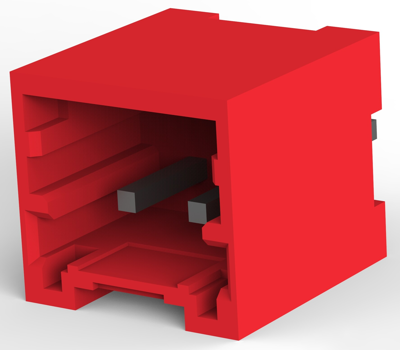

1-1971032-2 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1023 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
654.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
6400 pcs.
0.1023 €

PCB Connection System, 1-1971032-2, TE Connectivity

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Tab
  • Contact Base Material: Brass
  • Housing Material: Nylon 66 GF
  • Housing Color: red
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Rated current: 2.2 A
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 2 pole
Grid 2 mm
Connection solder pin
Orientation straight
Type of locking Yes
contact surface tin-plated
Connection plating tin-plated
Rated voltage 50 V
Rated current 2.2 A
Additional parts equipped
Number of rows 1
Breakable No
Colour red
Logistics
Country of origin IN
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
