1-1969694-5 | TE Connectivity

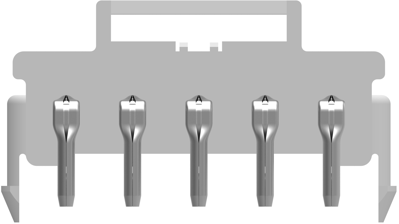

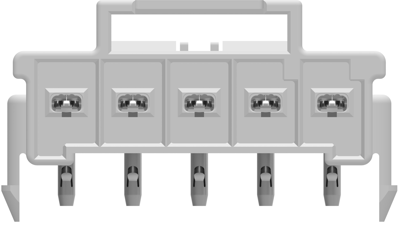

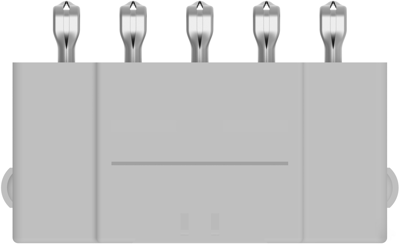

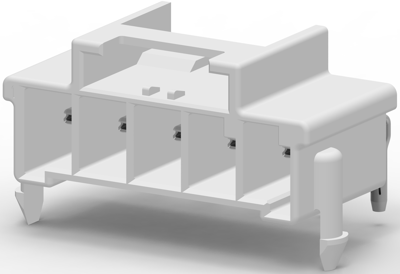

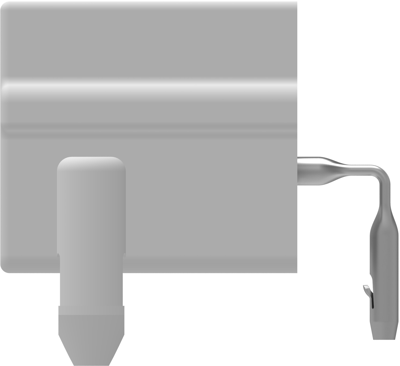

Socket header, 5 pole, pitch 6 mm, angled, gray, 1-1969694-5
Unit Price (€ / pc.)
2.7489 € *
Available in 5 Days: 18,072 pcs. - if ordered today
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5466 €
25 pcs.
2.3800 €
50 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale
Power triple lock connector, 1-1969694-5, TE Connectivity
The 1-1969694-5 offers high performance with a functional design. This product is ergonomically designed to minimize repetitive fatigue while providing many added customer benefits for performance assurance. Optional connector position assurance (CPA) ensures that, once engaged, this connector cannot be mistakenly disengaged.
Applications
- Automotive
- Industrial machinery
- Commercial building
- Household appliances
- HVAC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | pre-tinned | |
| Connection | solder connection | |
| Number of rows | 1 | |
| Colour | gray | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Version | socket header | |
| Orientation | angled | |
| Additional parts | equipped | |
| Rated current | 16.5 A | |
| Pin number | 5 pole | |
| Grid | 6 mm | |
| Rated voltage | 600 V | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
