1-1969614-0 | TE Connectivity

Socket header, 10 pole, pitch 4.2 mm, straight, natural, 1-1969614-0

Order No.: 35P5441
EAN: 4099889938661
MPN:
1-1969614-0
Series: VAL-U-LOK

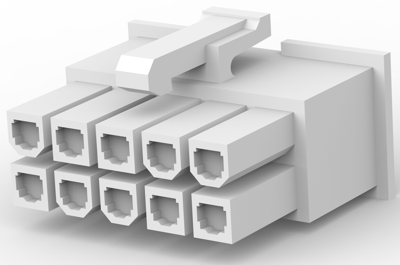

1-1969614-0 TE Connectivity PCB Connection Systems Image 1

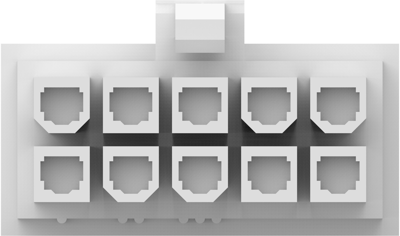

1-1969614-0 TE Connectivity PCB Connection Systems Image 2

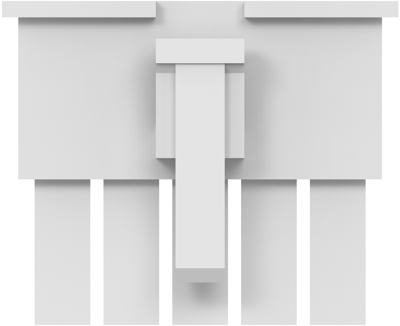

1-1969614-0 TE Connectivity PCB Connection Systems Image 3

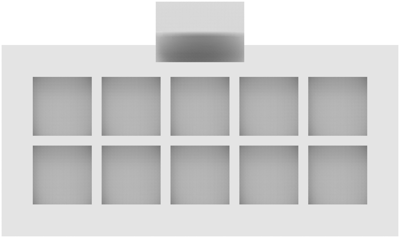

1-1969614-0 TE Connectivity PCB Connection Systems Image 4

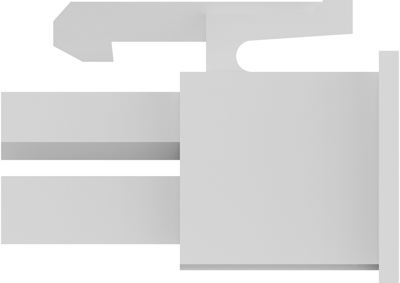

1-1969614-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available in 5 Days: 3,500 pcs. - if ordered today
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2904 €
50 pcs.
0.2606 €
100 pcs.
0.2380 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 1-1969614-0, TE Connectivity

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 10
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Centerline (Pitch): 4.2 mm
  • Row-to-Row Spacing: 4.2 mm [0.165 in]
  • Sealable: No
Technical specifications
Orientation straight
Number of rows 2
Type of locking Yes
Colour natural
Connection crimp connection
Rated voltage 600 V
Breakable No
Contact type socket
Grid 4.2 mm
Pin number 10 pole
Version socket header
Additional parts unequipped
Logistics
Customs tariff number 85389091
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
