1-1969612-8 | TE Connectivity

Plug housing, 18 pole, pitch 4.2 mm, straight, natural, 1-1969612-8

Order No.: 71P1046
EAN: 4099891718077
MPN:
1-1969612-8

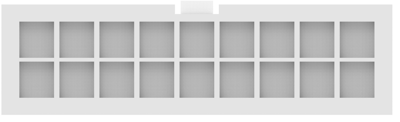

1-1969612-8 TE Connectivity PCB Connection Systems Image 1

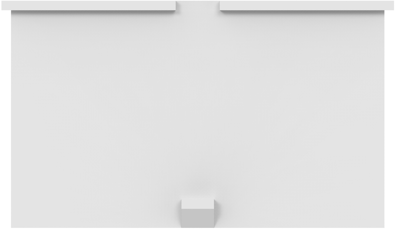

1-1969612-8 TE Connectivity PCB Connection Systems Image 2

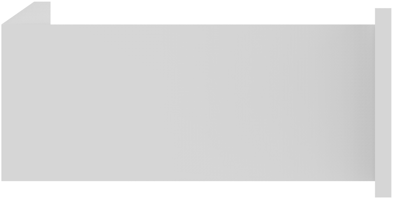

1-1969612-8 TE Connectivity PCB Connection Systems Image 3

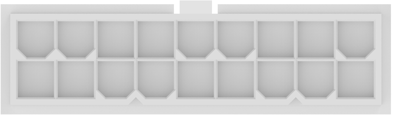

1-1969612-8 TE Connectivity PCB Connection Systems Image 4

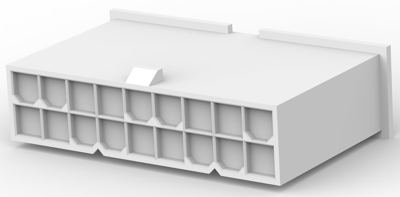

1-1969612-8 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 1,059 pcs. - if ordered today
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
10 pcs.
0.7021 €
25 pcs.
0.6545 €
50 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular connector, 1-1969612-8, TE Connectivity

The 1-1969612-8 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.

Applications

  • Household appliances
  • Desktop computers
  • Indoor/outdoor lighting
  • Security systems
  • HVAC control systems
  • Storage and networking systems
Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type pin
Version plug housing
Rated current 9 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Number of rows 2
Colour natural
Pin number 18 pole
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
