1-1969603-6 | TE Connectivity

Socket housing, 16 pole, pitch 4.2 mm, straight, white, 1-1969603-6

Order No.: 71P1033
EAN: 4099891717964
MPN:
1-1969603-6

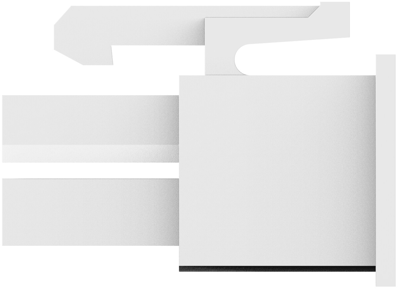

1-1969603-6 TE Connectivity PCB Connection Systems Image 1

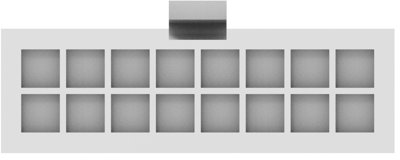

1-1969603-6 TE Connectivity PCB Connection Systems Image 2

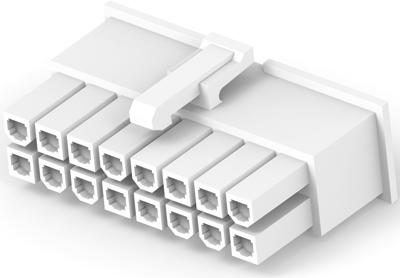

1-1969603-6 TE Connectivity PCB Connection Systems Image 3

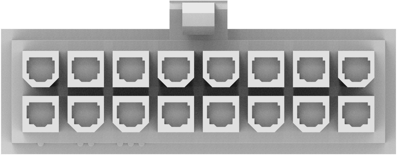

1-1969603-6 TE Connectivity PCB Connection Systems Image 4

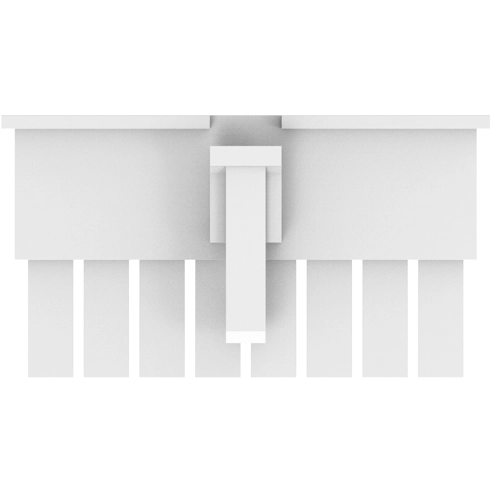

1-1969603-6 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available in 5 Days: 6,360 pcs. - if ordered today
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3332 €
10 pcs.
0.3094 €
25 pcs.
0.2916 €
50 pcs.
0.2642 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular connector, 1-1969603-6, TE Connectivity

The 1-1969603-6 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.

Applications

  • Household appliances
  • Desktop computers
  • Indoor/outdoor lighting
  • Security systems
  • HVAC control systems
  • Storage and networking systems
Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type socket
Version socket housing
Rated current 9 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Number of rows 2
Colour white
Pin number 16 pole
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
