1-1969599-8 | TE Connectivity

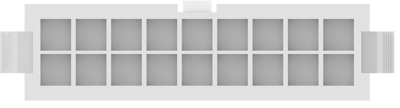

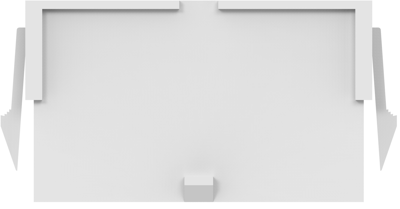

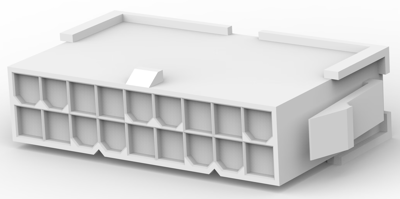

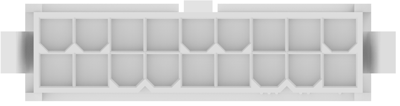

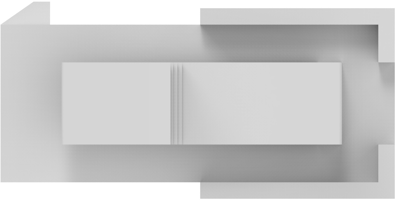

Plug housing, 18 pole, pitch 4.2 mm, straight, natural, 1-1969599-8
Order No.: 71P1030
EAN: 4099891717933
MPN:
1-1969599-8
Unit Price (€ / pc.)
0.3808 € *
Available in 5 Days: 3,451 pcs. - if ordered today
Rectangular connector, 1-1969599-8, TE Connectivity
The 1-1969599-8 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.
Applications
- Household appliances
- Desktop computers
- Indoor/outdoor lighting
- Security systems
- HVAC control systems
- Storage and networking systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | crimp connection | |
| Number of rows | 2 | |
| Colour | natural | |
| Type of locking | Yes | |
| Version | plug housing | |
| Orientation | straight | |
| Pin number | 18 pole | |
| Grid | 4.2 mm | |
| Rated voltage | 600 V | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
