1-1969599-0 | TE Connectivity

Plug housing, 10 pole, pitch 4.2 mm, straight, natural, 1-1969599-0

Order No.: 71P1027
EAN: 4099891717902
MPN:
1-1969599-0

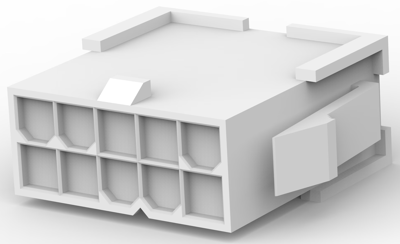

1-1969599-0 TE Connectivity PCB Connection Systems Image 1

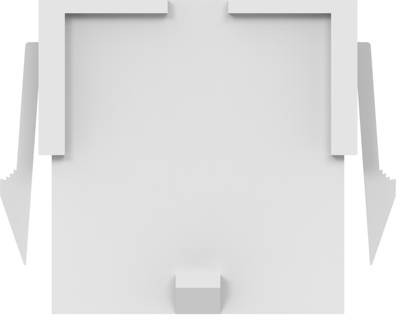

1-1969599-0 TE Connectivity PCB Connection Systems Image 2

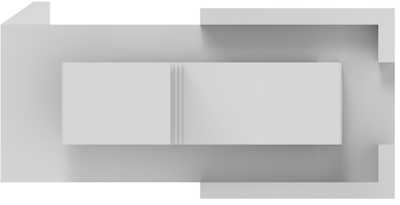

1-1969599-0 TE Connectivity PCB Connection Systems Image 3

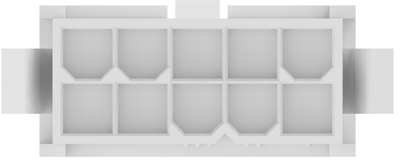

1-1969599-0 TE Connectivity PCB Connection Systems Image 4

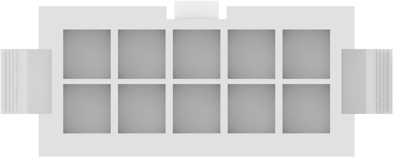

1-1969599-0 TE Connectivity PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2380 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2380 €
250 pcs.
0.2202 €
500 pcs.
0.2035 €
1000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular connector, 1-1969599-0, TE Connectivity

The 1-1969599-0 has been expanded with new models accommodating Terminal Position Assurance (TPA) device to help prevent contact back-out. Snapping the TPA device into place helps to assure that contacts are fully seated in the housing and provides secondary protection against a contact backing out of it's cavity when subjected to vibration, shock or pulling force.

Applications

  • Household appliances
  • Desktop computers
  • Indoor/outdoor lighting
  • Security systems
  • HVAC control systems
  • Storage and networking systems
Technical specifications
Filter Property Value
Grid 4.2 mm
Contact type pin
Version plug housing
Rated voltage 600 V
Orientation straight
Type of locking Yes
Number of rows 2
Colour natural
Pin number 10 pole
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
